BQ2023PW - Texas Instruments

Description: Texas Instruments BQ2023PW, Lithium-Ion, Lithium-Polymer, Battery Charge Controller 8-Pin, TSSOP

Download BQ2023PW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

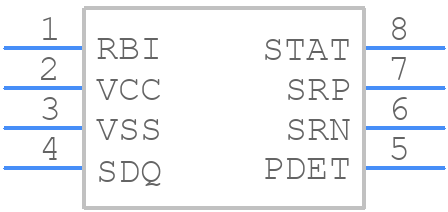

BQ2023PW - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ2023PW - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW0008A
click to zoom
3D Models
BQ2023PW - Texas Instruments - 3D model - Small Outline Packages - PW0008A
click to zoom

BQ2023PW Details

  • Manufacturer Part Number:

    BQ2023PW

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    1

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    BATTERY MONITOR
