BQ20Z70PWR-V160 - Texas Instruments

Description: Battery Management SBS 1.1-Compliant Gas Gauge

Download BQ20Z70PWR-V160 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

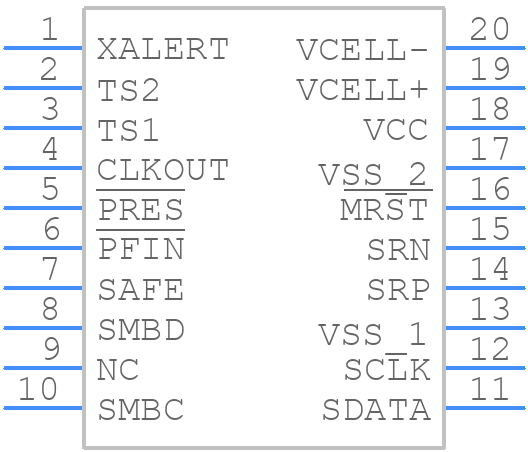

Symbol
BQ20Z70PWR-V160 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ20Z70PWR-V160 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW (R-PDSO-G20)
click to zoom
3D Models
BQ20Z70PWR-V160 - Texas Instruments - 3D model - Small Outline Packages - PW (R-PDSO-G20)
click to zoom

BQ20Z70PWR-V160 Details

  • Manufacturer Part Number:

    BQ20Z70PWR-V160

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    20

  • Country Of Origin:

    Malaysia, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    BATTERY GAUGE

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    2.6 V

  • Supply Voltage-Min (Vsup):

    2.4 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

BQ20Z70PWR-V160 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate layer for the battery voltage is recommended. The device should be placed close to the battery, and the layout should minimize the loop area of the high-current paths.
  • Calibration involves learning the battery's capacity and internal resistance. Use the device's built-in calibration mode, and follow the recommended procedure in the datasheet. Ensure the battery is in a relaxed state, and the device is in a stable thermal environment.
  • Temperature affects the device's accuracy. Ensure the device is within its operating temperature range (–40°C to 85°C). For optimal accuracy, calibrate the device at the expected operating temperature range. Temperature compensation can be implemented using the device's built-in temperature sensor or an external temperature sensor.
  • Use the device's sleep mode to minimize power consumption when the system is in standby. Configure the device to wake up periodically to monitor the battery state. Use the device's low-power modes, such as the 'Sleep' or 'Hibernate' modes, to reduce power consumption.
  • Choose a sense resistor value that balances the trade-off between accuracy and power consumption. A lower sense resistor value increases accuracy but increases power consumption. A higher sense resistor value reduces power consumption but may compromise accuracy. Consult the datasheet for recommended sense resistor values.
