Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow the guidelines in the 'Battery Fuel Gauge Design Guide' (SLUA451) and the 'PCB Layout Guidelines for Fuel Gauges' (SLUA452) application notes.
Calibration of the fuel gauge is done through the use of the TI-provided software, such as the Fuel Gauge Calibration Tool, which communicates with the device through I2C or HDQ. The tool guides the user through the calibration process, which involves measuring the battery's capacity and internal resistance.
The accuracy of the fuel gauge depends on various factors, including the quality of the calibration, the type of battery, and the operating conditions. However, according to the datasheet, the BQ20Z95DBTG4 has a typical accuracy of ±1% for state-of-charge (SOC) and ±5% for remaining capacity (RC) measurements.
The BQ20Z95DBTG4 is optimized for lithium-ion (Li-ion) batteries, but it can be used with other chemistries, such as lithium-polymer (Li-poly) or nickel-metal hydride (NiMH), with some modifications to the calibration and configuration. However, it's recommended to consult with Texas Instruments or a battery expert to ensure proper operation and accuracy.
The POR and BOR are internal reset mechanisms that ensure the device starts up correctly. To handle these resets, it's recommended to use an external capacitor to filter the power supply and ensure a clean power-on sequence. Additionally, the device's reset pins can be connected to a microcontroller or other logic to detect and respond to resets.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ20Z95DBTG4 Overview

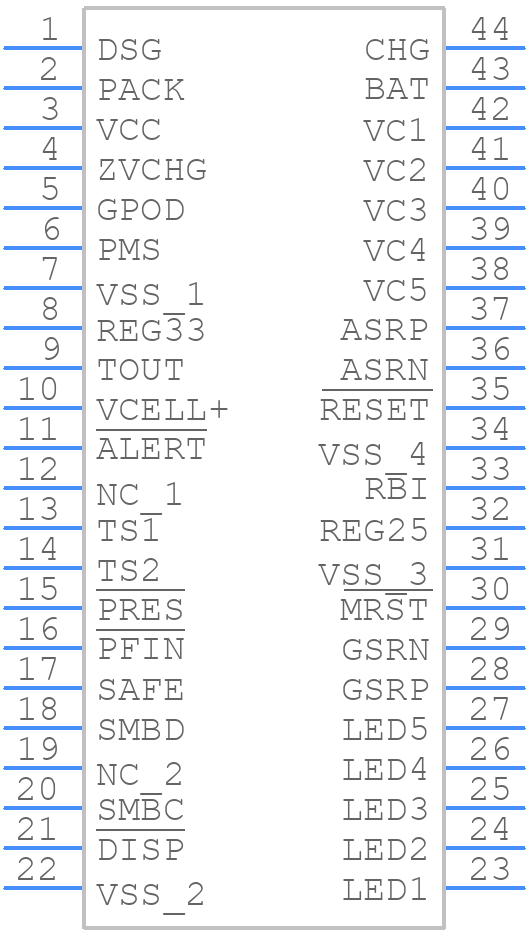

Use the download button to access the BQ20Z95DBTG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ20Z,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
