BQ20Z95DBT - Texas Instruments

Description: TEXAS INSTRUMENTS - BQ20Z95DBT - Li-Ion/-Pol Battery Fuel Gauge, Protector, 4.5-25V supply, 2 Wire, Serial, SMBus, TSSOP-44

Download BQ20Z95DBT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

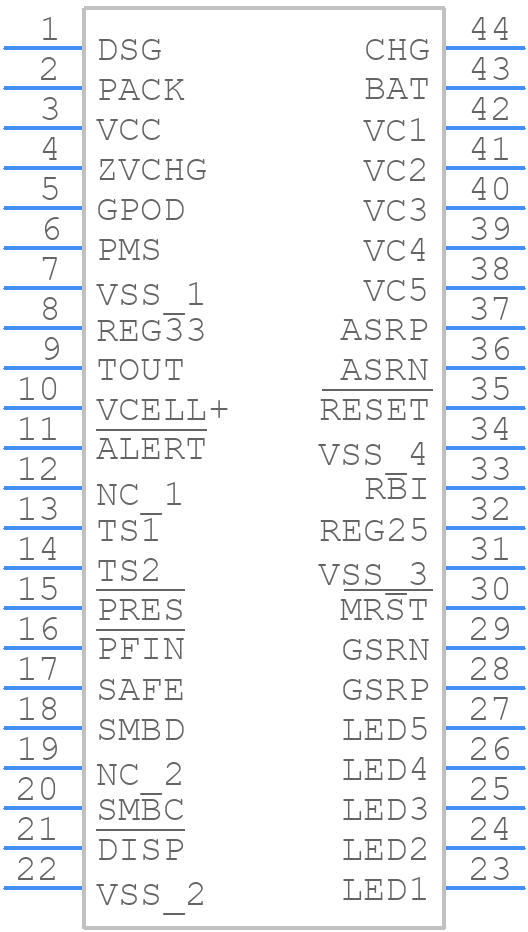

BQ20Z95DBT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ20Z95DBT - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DBT0044A
click to zoom
3D Models
BQ20Z95DBT - Texas Instruments - 3D model - Small Outline Packages - DBT0044A
click to zoom

BQ20Z95DBT Details

  • Manufacturer Part Number:

    BQ20Z95DBT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-44

  • Pin Count:

    44

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    BATTERY GAUGE

  • JESD-30 Code:

    R-PDSO-G44

  • JESD-609 Code:

    e4

  • Length:

    11 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    44

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP44,.25,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    25 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    14 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

BQ20Z95DBT Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate layer for the fuel gauge circuitry is recommended. Keep the sense resistors close to the battery and use a Kelvin connection to minimize noise and errors.
  • Use the TI-provided calibration software and follow the application note guidelines to create a custom calibration file. This involves measuring the battery's capacity, internal resistance, and other characteristics to create a tailored calibration profile.
  • Use a daisy-chain configuration, where each device communicates with its neighbors, and the last device communicates with the host controller. Ensure proper isolation and synchronization between devices to maintain accuracy and prevent errors.
  • Use an external current sense resistor or a current sense amplifier to scale the current measurement to within the BQ20Z95DBT's range. Alternatively, use a high-side current sense approach with an external amplifier and ADC.
  • Use a thermally conductive PCB material, ensure good airflow, and consider using thermal interface materials. Follow the datasheet's thermal derating guidelines and consider using a temperature sensor to monitor the device's temperature.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BQ20Z95DBT Overview

Use the download button to access the BQ20Z95DBT schematic symbol, PCB footprint, and 3D model.
