BQ21061YFPR - Texas Instruments

Description: 500-mA 1-cell linear charger with 10-nA ship mode, power-path, regulated system voltage and LDO</

Download BQ21061YFPR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

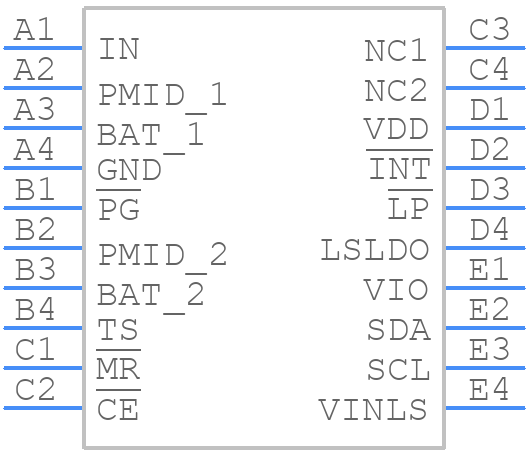

BQ21061YFPR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ21061YFPR - Texas Instruments PCB footprint - BGA - BGA - YFP0020-1
click to zoom
3D Models
BQ21061YFPR - Texas Instruments - 3D model - BGA - YFP0020-1
click to zoom

BQ21061YFPR Details

  • Manufacturer Part Number:

    BQ21061YFPR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2019-09-07

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    3.15 V

  • JESD-30 Code:

    R-PBGA-B20

  • JESD-609 Code:

    e1

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA20,4X5,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.5 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    3.15 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

BQ21061YFPR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the battery, and the power traces should be wide and short to minimize resistance and inductance.
  • The BQ21061YFPR can be configured using the I2C interface to set the battery chemistry, capacity, and charging parameters. The device also has a built-in battery detection feature that can automatically detect the battery type and capacity.
  • The BQ21061YFPR can support up to 2A of charging current, but the maximum current is dependent on the input voltage and the battery capacity. The device also has a built-in overcurrent protection feature to prevent damage from excessive current.
  • The BQ21061YFPR has built-in protection features such as overcharge protection, over-discharge protection, and short-circuit protection. The device also has a thermal protection feature that shuts down the device if the junction temperature exceeds 150°C.
  • The BQ21061YFPR is rated for operation up to 85°C, but it can be used in high-temperature environments with proper thermal design and heat sinking. However, the device's performance and reliability may be affected at high temperatures.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BQ21061YFPR Overview

Use the download button to access the BQ21061YFPR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ210, or try a keyword search, such as Power Management Circuits
