OPTIONAL TEMPERATURE OR INPUT-POWER MONITORING BEFORE AND DURING CHARGE
Adjustable Threshold:
YES
Analog IC - Other Type:
BATTERY MONITOR/PROTECTOR
Input Voltage-Max:
10 V
Input Voltage-Min:
4.5 V
JESD-30 Code:
R-PDSO-G20
JESD-609 Code:
e4
Length:
6.5 mm
Moisture Sensitivity Level:
2
Number of Channels:
1
Number of Functions:
1
Number of Terminals:
20
Operating Temperature-Max:
70 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
HTSSOP
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Voltage-Max (Vsup):
10 V
Supply Voltage-Min (Vsup):
4.5 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Temperature Grade:
COMMERCIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
BQ24001PWP Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended layout and placement guide in the application note SLUA444, which includes guidelines for component placement, routing, and thermal considerations to ensure optimal performance and minimize electromagnetic interference (EMI).
The BQ24001PWP has a programmable charging profile, and Texas Instruments provides a charging profile optimization tool, the bq24001 Charging Profile Optimization Tool, which helps designers optimize the charging profile for their specific battery type and chemistry.
The BQ24001PWP is rated for operation from -40°C to 85°C, but it's recommended to derate the device's performance at higher temperatures. Consult the datasheet and application notes for more information on thermal considerations.
While the BQ24001PWP is optimized for Li-Ion batteries, it can be used with other battery chemistries with some modifications. However, Texas Instruments recommends consulting with their support team to ensure the device is properly configured and optimized for the specific battery chemistry.
Texas Instruments provides guidance on safety considerations and compliance with relevant standards in the application note SLUA443. Additionally, the BQ24001PWP is designed to meet the requirements of IEC 62133 and UL 2054, but it's the designer's responsibility to ensure the overall system meets these standards.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ24001PWP Overview

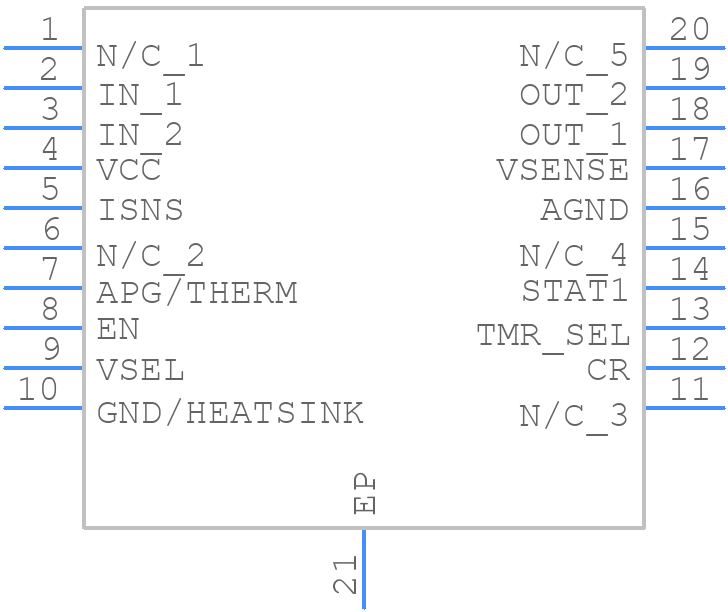

Use the download button to access the BQ24001PWP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ240,
or try a keyword search, such as Power Management Circuits
