OPTIONAL TEMPERATURE OR INPUT-POWER MONITORING BEFORE AND DURING CHARGE
Adjustable Threshold:
YES
Analog IC - Other Type:
BATTERY MONITOR
Input Voltage-Max:
10 V
Input Voltage-Min:
4.5 V
JESD-30 Code:
R-PDSO-G20
JESD-609 Code:
e4
Length:
6.5 mm
Moisture Sensitivity Level:
2
Number of Functions:
1
Number of Terminals:
20
Operating Temperature-Max:
70 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
HTSSOP
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Packing Method:
TUBE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Voltage-Max (Vsup):
10 V
Supply Voltage-Min (Vsup):
4.5 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Temperature Grade:
COMMERCIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
BQ24006PWP Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended layout and placement guide in the application note SLUA444, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The BQ24006PWP datasheet provides a list of recommended external components, including capacitors, resistors, and inductors. Additionally, Texas Instruments offers a web-based tool, WEBENCH Power Designer, which can help designers select the optimal external components for their specific application.
While the datasheet specifies a maximum input voltage of 18V, the BQ24006PWP can handle input voltage transients up to 22V for short durations (less than 100ms). However, it's essential to ensure that the input voltage remains within the specified range for reliable operation.
The BQ24006PWP has a built-in OVP feature that can be enabled by connecting the OVP pin to a voltage divider network. The OVP threshold can be set by selecting the appropriate resistor values. Texas Instruments provides a detailed example of OVP implementation in the application note SLUA443.
The thermal derating curve for the BQ24006PWP is not explicitly provided in the datasheet. However, Texas Instruments recommends following the thermal design guidelines outlined in the application note SLUA444, which includes a thermal derating curve for the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ24006PWP Overview

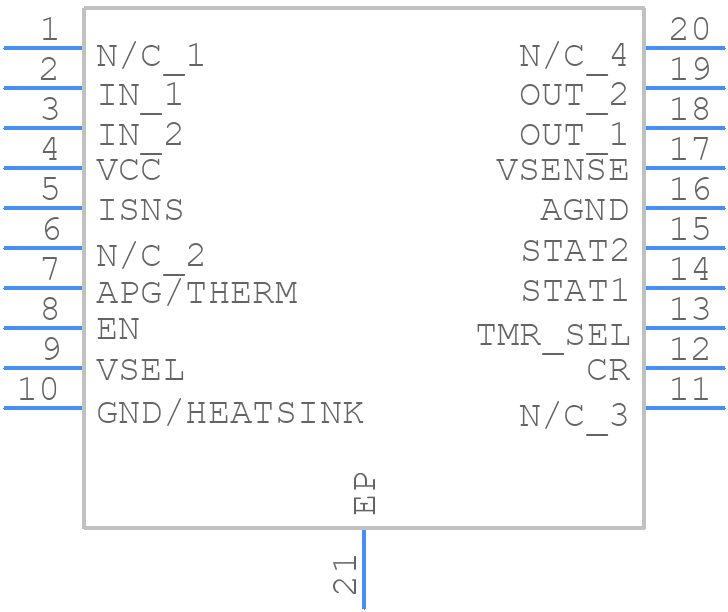

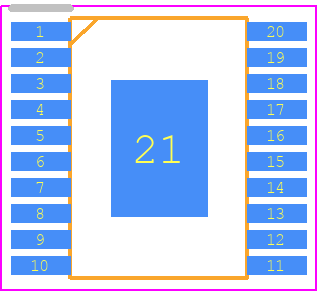

Use the download button to access the BQ24006PWP schematic symbol, PCB footprint, and 3D model.
