Texas Instruments provides a recommended layout and placement guide in the application note SLUA444, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The BQ24031IRHLRQ1 can be configured for different charging scenarios using external resistors and capacitors. The device has multiple configuration pins that can be connected to different resistors and capacitors to set the charging voltage, current, and timeout. The datasheet provides a detailed description of the configuration options and the corresponding component values.
The BQ24031IRHLRQ1 is rated for operation in an ambient temperature range of -40°C to 85°C. However, the device can be operated at temperatures above 85°C with derating. The datasheet provides a detailed description of the temperature derating curve.
To ensure EMC with the BQ24031IRHLRQ1, follow the guidelines provided in the application note SLUA444, which includes recommendations for PCB layout, component selection, and shielding. Additionally, the device has built-in EMI filtering and can be configured to meet specific EMC requirements.
The typical startup time for the BQ24031IRHLRQ1 is around 10 ms to 20 ms, depending on the input voltage and the configuration. The device has a built-in soft-start feature that helps to reduce the inrush current during startup.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ24031IRHLRQ1 Overview

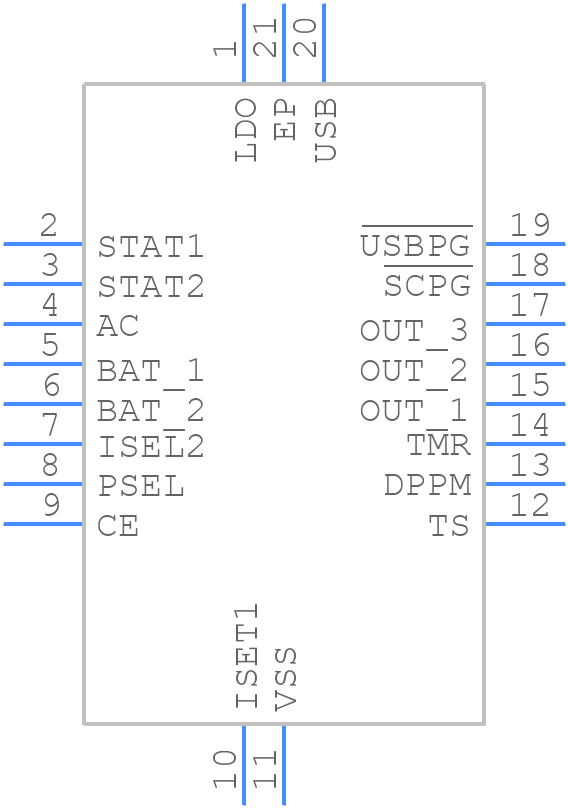

Use the download button to access the BQ24031IRHLRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ240,
or try a keyword search, such as Power Management Circuits
