The recommended layout and placement for the BQ24050DSQR involves placing the device close to the battery, using a solid ground plane, and keeping the input and output capacitors close to the device. A 4-layer PCB with a solid ground plane is recommended. Refer to the TI application note SLUA623 for more details.
To optimize the charging current for your specific battery, you need to consider the battery's chemistry, capacity, and charging profile. The BQ24050DSQR has a programmable charging current, and you can adjust the ICHG pin to set the desired charging current. Refer to the battery manufacturer's recommendations and the BQ24050DSQR datasheet for more information.
The BQ24050DSQR has a thermal shutdown feature that protects the device from overheating. However, it's essential to ensure good thermal design and layout practices, such as providing adequate heat sinking and airflow, to prevent overheating. The device's thermal resistance (θJA) is 30°C/W, and the maximum operating temperature is 125°C.
The BQ24050DSQR has a built-in overvoltage protection (OVP) feature that can be enabled by connecting the OVP pin to a voltage source. The device will shut down if the input voltage exceeds the OVP threshold (typically 6.5V). You can also implement external OVP using a voltage supervisor or a dedicated OVP IC.
The BQ24050DSQR is designed to meet EMI and EMC standards, but it's essential to follow good design practices, such as using a solid ground plane, decoupling capacitors, and shielding, to minimize electromagnetic interference. Additionally, ensure that the device is placed away from noise-sensitive components and that the PCB layout is optimized for EMI reduction.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ24050DSQR Overview

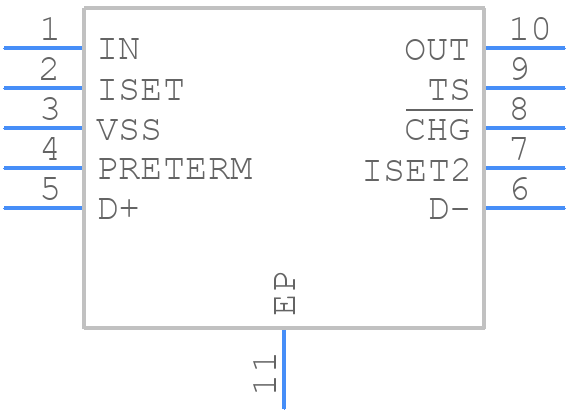

Use the download button to access the BQ24050DSQR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ240,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
