SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE, SHRINK PITCH
Packing Method:
TR
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1 mm
Supply Current-Max (Isup):
6 mA
Supply Voltage-Max (Vsup):
16.5 V
Supply Voltage-Min (Vsup):
4.35 V
Supply Voltage-Nom (Vsup):
6 V
Surface Mount:
YES
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Threshold Voltage-Nom:
+6.5V
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm
BQ24061DRCT Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended layout and placement guide in the application note SLUA444, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The BQ24061DRCT has a programmable charging profile, and Texas Instruments provides a charging profile optimization tool, the bq2406x Charging Profile Optimization Tool, which helps designers create a custom charging profile for their specific battery. The tool takes into account factors such as battery chemistry, capacity, and charging requirements.
While the datasheet specifies an operating temperature range of -40°C to 85°C, the maximum ambient temperature range for the BQ24061DRCT depends on the specific application and thermal design. Texas Instruments recommends following the thermal design guidelines in the application note SLUA444 to ensure the device operates within a safe temperature range.
The BQ24061DRCT is designed to support standard battery chemistries such as Li-Ion, Li-Polymer, and NiMH. While it may be possible to use the device with non-standard battery chemistries, Texas Instruments recommends consulting with their technical support team to determine the feasibility and any necessary modifications to the charging profile and design.
Texas Instruments provides guidance on safety standards compliance in the application note SLUA444, which includes recommendations for design, testing, and certification. Additionally, the BQ24061DRCT is designed to meet the requirements of IEC 62133 and UL 2054, and Texas Instruments offers certification support and documentation to help designers achieve compliance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ24061DRCT Overview

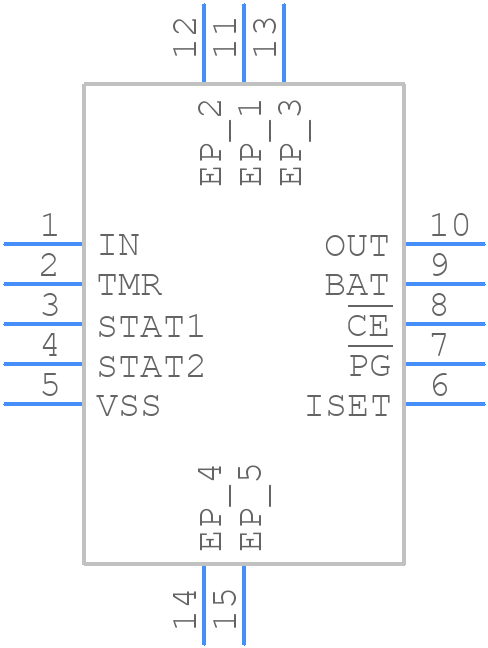

Use the download button to access the BQ24061DRCT schematic symbol, PCB footprint, and 3D model.
