DETECTION THRESHOLD VOLTAGE IS 0.08V; I/P ACCEPTS UP TO 26V WITHOUT DAMAGE, BUT OPERATN IS SUSPENDED
Adjustable Threshold:
YES
Analog IC - Other Type:
LINEAR BATTERY CHARGER
Input Voltage-Max:
6.4 V
Input Voltage-Min:
4.35 V
JESD-30 Code:
S-PQCC-N16
JESD-609 Code:
e4
Length:
3 mm
Moisture Sensitivity Level:
2
Number of Channels:
1
Number of Functions:
1
Number of Terminals:
16
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
HVQCCN
Package Equivalence Code:
LCC16,.12SQ,20
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1 mm
Supply Current-Max (Isup):
1.5 mA
Supply Voltage-Max (Vsup):
6.4 V
Supply Voltage-Min (Vsup):
4.35 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Threshold Voltage-Nom:
+6.6V
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm
BQ24072TRGTT Frequently Asked Questions (FAQs)
A good PCB layout for the BQ24072TRGTT involves placing the device close to the battery, using a solid ground plane, and keeping the input and output capacitors close to the device. Additionally, it's recommended to use a separate power plane for the input and output to minimize noise coupling.
The selection of external components such as input and output capacitors, inductors, and resistors depends on the specific application requirements. TI provides a component selection guide in the datasheet, and engineers can also use TI's WEBENCH online design tool to simplify the component selection process.
The BQ24072TRGTT has a junction temperature range of -40°C to 125°C. To ensure reliable operation, engineers should ensure good thermal design practices such as providing adequate heat sinking, using thermal vias, and keeping the device away from heat sources. TI also provides thermal design guidelines in the datasheet.
To troubleshoot issues with the BQ24072TRGTT, engineers can use a combination of visual inspection, voltage and current measurements, and thermal imaging. TI also provides a troubleshooting guide in the datasheet, and engineers can also contact TI's support team for assistance.
Yes, the BQ24072TRGTT is a switching regulator and can generate EMI. To minimize EMI, engineers should follow good PCB layout practices, use shielding, and add EMI filters as needed. TI also provides EMI/EMC guidelines in the datasheet.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ24072TRGTT Overview

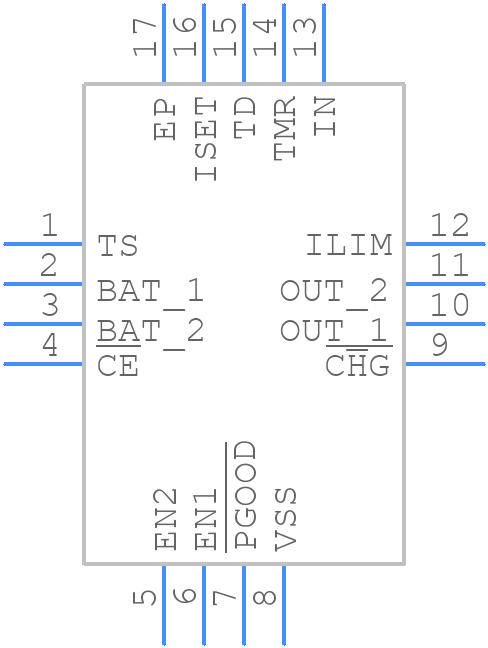

Use the download button to access the BQ24072TRGTT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ240,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
