BQ24073RGTR - Texas Instruments

Description: USB-Friendly Li-Ion Battery Charger and Power-Path Management IC, Vout 4.4V

Download BQ24073RGTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

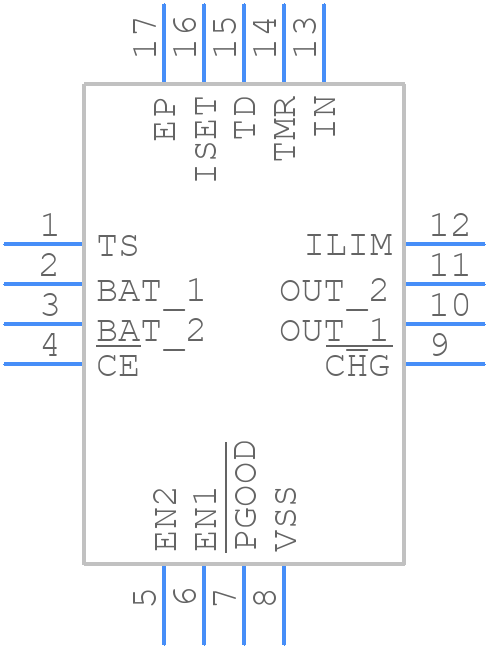

BQ24073RGTR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ24073RGTR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGT0016B
click to zoom
3D Models
BQ24073RGTR - Texas Instruments - 3D model - Quad Flat No-Lead - RGT0016B
click to zoom

BQ24073RGTR Details

  • Manufacturer Part Number:

    BQ24073RGTR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • Input Voltage-Max:

    6.4 V

  • Input Voltage-Min:

    4.35 V

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    1.5 mA

  • Supply Voltage-Max (Vsup):

    26 V

  • Supply Voltage-Min (Vsup):

    4.35 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +6.6V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

BQ24073RGTR Frequently Asked Questions (FAQs)

  • A good PCB layout for the BQ24073RGTR involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. TI provides a recommended PCB layout in the datasheet and application notes.
  • The selection of input and output capacitors for the BQ24073RGTR depends on the specific application requirements. TI recommends using low-ESR capacitors with a minimum capacitance of 4.7uF for the input and 10uF for the output. The capacitor selection guide in the datasheet provides more information.
  • The BQ24073RGTR can handle input voltages up to 18V, but it is recommended to operate within the specified input voltage range of 4.5V to 12V for optimal performance and reliability.
  • The BQ24073RGTR has a built-in OVP feature that can be enabled by connecting the OVP pin to a voltage divider network. The OVP threshold can be set by adjusting the voltage divider ratio. TI provides more information on implementing OVP in the datasheet and application notes.
  • The BQ24073RGTR is rated for operation up to 85°C, but it can be derated for higher temperatures. TI provides thermal derating information in the datasheet. It is recommended to use thermal management techniques, such as heat sinks or thermal pads, to ensure reliable operation in high-temperature environments.
