DETECTION THRESHOLD VOLTAGE IS 0.08V; I/P ACCEPTS UP TO 26V WITHOUT DAMAGE, BUT OPERATN IS SUSPENDED
Adjustable Threshold:
YES
Analog IC - Other Type:
LINEAR BATTERY CHARGER
Input Voltage-Max:
6.4 V
Input Voltage-Min:
4.35 V
JESD-30 Code:
S-PQCC-N16
JESD-609 Code:
e4
Length:
3 mm
Moisture Sensitivity Level:
2
Number of Channels:
1
Number of Functions:
1
Number of Terminals:
16
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
HVQCCN
Package Equivalence Code:
LCC16,.12SQ,20
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1 mm
Supply Current-Max (Isup):
1.5 mA
Supply Voltage-Max (Vsup):
6.4 V
Supply Voltage-Min (Vsup):
4.35 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Threshold Voltage-Nom:
+6.6V
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm
BQ24075TRGTT Frequently Asked Questions (FAQs)
A good PCB layout for the BQ24075TRGTT involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. TI provides a recommended PCB layout in the datasheet and application notes.
The selection of external components such as capacitors, resistors, and inductors depends on the specific application requirements. TI provides guidelines for component selection in the datasheet and application notes. Additionally, TI's Webench tool can be used to simulate and optimize the design.
The BQ24075TRGTT is rated for operation from -40°C to 85°C. However, the device can be operated at higher temperatures with derating. Consult the datasheet for more information on temperature derating.
Troubleshooting the BQ24075TRGTT involves checking the input voltage, output voltage, and current. Use an oscilloscope to check for voltage ripple, noise, and oscillations. Consult the datasheet and application notes for troubleshooting guidelines.
Yes, the BQ24075TRGTT is suitable for high-reliability applications. It is built with high-reliability components and has undergone rigorous testing. However, it is essential to follow proper design and manufacturing guidelines to ensure the device operates within its specifications.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
BQ24075TRGTT Overview

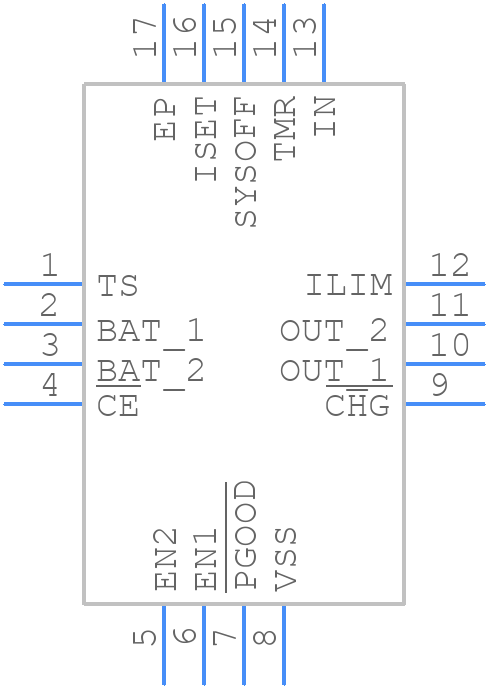

Use the download button to access the BQ24075TRGTT schematic symbol, PCB footprint, and 3D model.
