BQ24123RHLR - Texas Instruments

Description: Synchronous Switch-Mode 2-cell Li-Ion Charger w/2A FET, enhanced EMI performance

Download BQ24123RHLR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

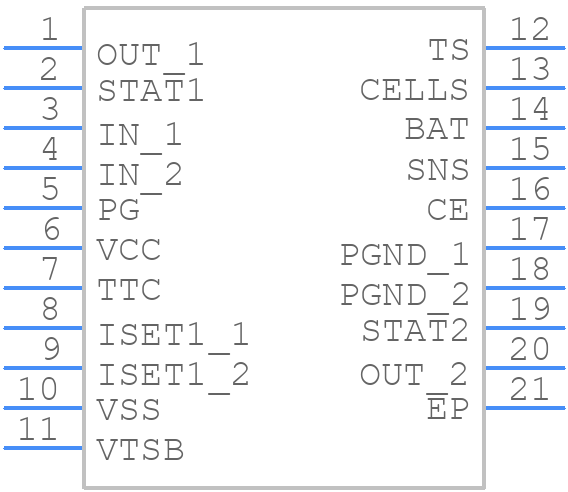

BQ24123RHLR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ24123RHLR - Texas Instruments PCB footprint - Other - Other - RHL0020A
click to zoom
3D Models
BQ24123RHLR - Texas Instruments - 3D model - Other - RHL0020A
click to zoom

BQ24123RHLR Details

  • Manufacturer Part Number:

    BQ24123RHLR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    20

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • Input Voltage-Max:

    16 V

  • Input Voltage-Min:

    4.35 V

  • JESD-30 Code:

    R-PQCC-N20

  • JESD-609 Code:

    e4

  • Length:

    4.5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HQCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    5 mA

  • Supply Voltage-Max (Vsup):

    16 V

  • Supply Voltage-Min (Vsup):

    4.35 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +3.3V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.5 mm

BQ24123RHLR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output capacitors close to the IC, and use short, wide traces for the power paths. Avoid routing sensitive analog signals near the power paths.
  • Choose X5R or X7R ceramic capacitors with a voltage rating of at least 1.5 times the maximum input voltage. For the input capacitor, a value of 10uF to 22uF is recommended. For the output capacitor, a value of 22uF to 47uF is recommended. Ensure the capacitors are placed close to the IC and have a low ESR.
  • The BQ24123RHLR is rated for operation from -40°C to 85°C. However, the device may still function outside this range, but with reduced performance and reliability.
  • Yes, the BQ24123RHLR is suitable for battery-powered devices. It has a low quiescent current of 15uA, making it suitable for battery-powered applications. However, ensure the input voltage is within the recommended range and the device is properly configured for battery-powered operation.
  • The BQ24123RHLR has a fixed output voltage of 3.3V or 5V, depending on the version. However, you can use an external resistor divider network to adjust the output voltage. Refer to the datasheet for the recommended resistor values and configuration.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BQ24123RHLR Overview

Use the download button to access the BQ24123RHLR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ241, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
