The recommended layout and placement for the BQ24123RHLT involves placing the device close to the battery, using a solid ground plane, and keeping the input and output capacitors close to the device. A 4-layer PCB with a solid ground plane is recommended. TI provides a layout guide in the datasheet and application notes.
The BQ24123RHLT has a programmable charging current and voltage. To optimize the charging current and voltage for your specific battery, you can use the ISET pin to set the charging current and the VREG pin to set the charging voltage. You can also use the EN pin to enable or disable the charging function. Refer to the datasheet and application notes for more information.
The BQ24123RHLT has a thermal shutdown feature that turns off the device when the junction temperature exceeds 150°C. To ensure reliable operation, it's essential to provide adequate thermal dissipation, such as using a heat sink or a thermal pad. The device's thermal resistance (θJA) is 30°C/W, and the maximum operating junction temperature is 125°C.
To ensure safe and reliable charging with the BQ24123RHLT, follow proper charging guidelines, such as using a thermistor to monitor battery temperature, implementing overcharge protection, and using a fuse or PTC to prevent overcurrent. Additionally, ensure that the device is properly configured and that the input voltage and current are within the recommended specifications.
The BQ24123RHLT is designed to meet EMI and EMC standards. To minimize EMI, use a shielded cable for the input and output, keep the device away from noise sources, and use a common-mode choke or ferrite bead on the input. For EMC, ensure that the device is properly grounded, and use a metal shield or a Faraday cage to contain electromagnetic radiation.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ24123RHLT Overview

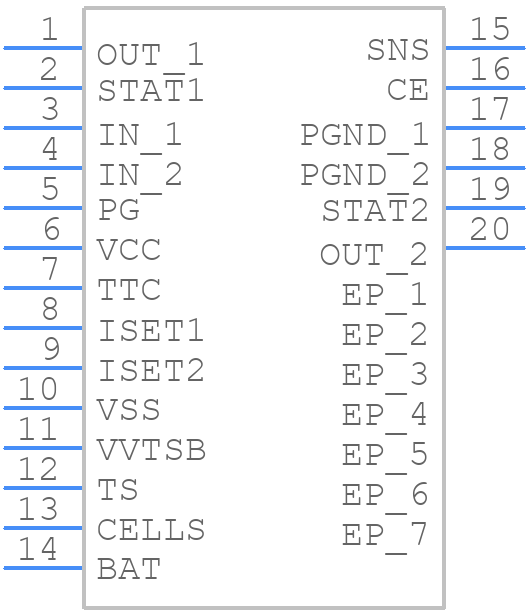

Use the download button to access the BQ24123RHLT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ241,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
