BQ24152YFFR - Texas Instruments

Description: Battery Management Fully Int Sw-Mode 1 Cell Li-Ion Chrgr

Download BQ24152YFFR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

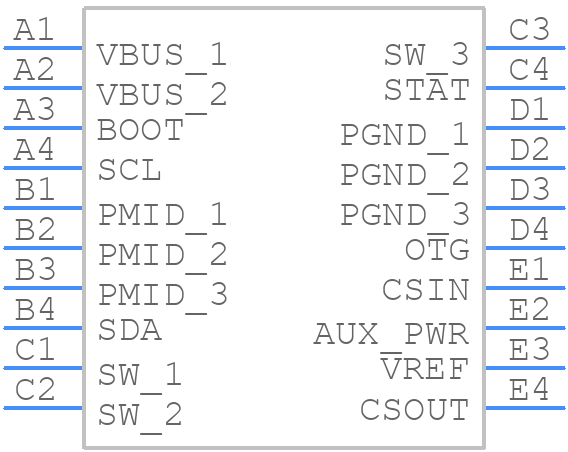

BQ24152YFFR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ24152YFFR - Texas Instruments PCB footprint - BGA - BGA - YFF (XBGA-N20) .
click to zoom
3D Models
BQ24152YFFR - Texas Instruments - 3D model - BGA - YFF (XBGA-N20) .
click to zoom

BQ24152YFFR Details

  • Manufacturer Part Number:

    BQ24152YFFR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    BGA

  • Pin Count:

    20

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    3.9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • Input Voltage-Max:

    6 V

  • Input Voltage-Min:

    4 V

  • JESD-30 Code:

    R-XBGA-B20

  • JESD-609 Code:

    e1

  • Length:

    2.305 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA20,4X5,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.625 mm

  • Supply Current-Max (Isup):

    5 mA

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Threshold Voltage-Nom:

    +3.3V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.905 mm

BQ24152YFFR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended layout and placement guide in the application note SLUA533, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The BQ24152YFFR has several configuration options for different charging scenarios, such as USB-OTG, USB-BC, and proprietary charging. The device can be configured using external resistors on the ISET and CHGCFG pins, and the configuration options are described in the application note SLUA534.
  • The BQ24152YFFR has an internal overvoltage protection (OVP) circuit that can handle input voltages up to 20V. However, it is recommended to limit the input voltage to 12V to ensure reliable operation and prevent damage to the device.
  • The BQ24152YFFR has a built-in battery detection circuit that can detect battery insertion and removal during charging. When a battery is inserted or removed, the device will automatically adjust the charging current and voltage to ensure safe and reliable operation.
  • Yes, the BQ24152YFFR can be used for charging multiple batteries in parallel. However, it is recommended to use a separate charging IC for each battery to ensure independent charging and monitoring of each battery.
