BQ24155RGYR - Texas Instruments

Description: Battery Management Fully Integr Sw-Mode 1Cell Li-Ion Charge

Download BQ24155RGYR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

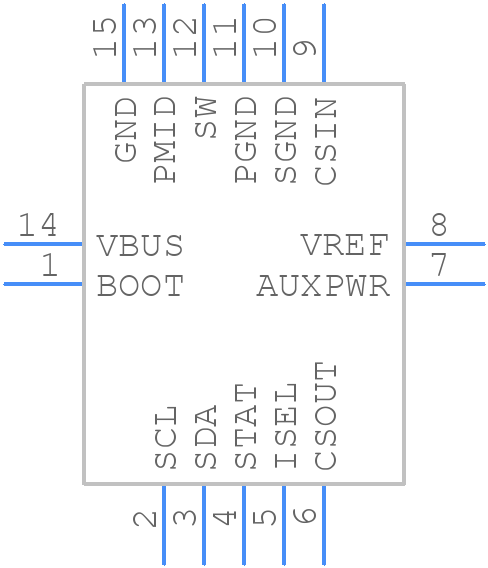

BQ24155RGYR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ24155RGYR - Texas Instruments PCB footprint - Other - Other - RGY (S-PVQFN-N14)_2023-1
click to zoom
3D Models
BQ24155RGYR - Texas Instruments - 3D model - Other - RGY (S-PVQFN-N14)_2023-1
click to zoom

BQ24155RGYR Details

  • Manufacturer Part Number:

    BQ24155RGYR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    14

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • Input Voltage-Max:

    6 V

  • Input Voltage-Min:

    4 V

  • JESD-30 Code:

    S-PQCC-N14

  • JESD-609 Code:

    e4

  • Length:

    3.5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC14/18,.14SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    5 mA

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +3.3V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.5 mm

BQ24155RGYR Frequently Asked Questions (FAQs)

  • A good PCB layout for the BQ24155RGYR involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. TI provides a recommended PCB layout in the datasheet and application notes.
  • The selection of input and output capacitors for the BQ24155RGYR depends on the specific application requirements. TI recommends using low-ESR capacitors with a minimum capacitance of 10uF for the input and output. The capacitor selection guide in the datasheet provides more information.
  • The BQ24155RGYR can handle input voltages up to 18V, but it's recommended to keep the input voltage below 15V for optimal performance and to prevent overheating.
  • The BQ24155RGYR output voltage can be configured using the EN/DVS and FB pins. The EN/DVS pin sets the output voltage to either 3.3V or 5V, and the FB pin allows for adjustable output voltage using a resistive divider network. The datasheet provides more information on the configuration options.
  • The BQ24155RGYR has a thermal shutdown feature that turns off the device when the junction temperature exceeds 150°C. To prevent overheating, it's recommended to provide adequate airflow, use a heat sink if necessary, and ensure good thermal conductivity between the device and the PCB.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BQ24155RGYR Overview

Use the download button to access the BQ24155RGYR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ241, or try a keyword search, such as Power Management Circuits
