Part Image

BQ24160RGER - Texas Instruments

Description: 2.5A, Dual-Input, Single Cell Switchmode Li-Ion Battery Charger with Power Path

Download BQ24160RGER Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

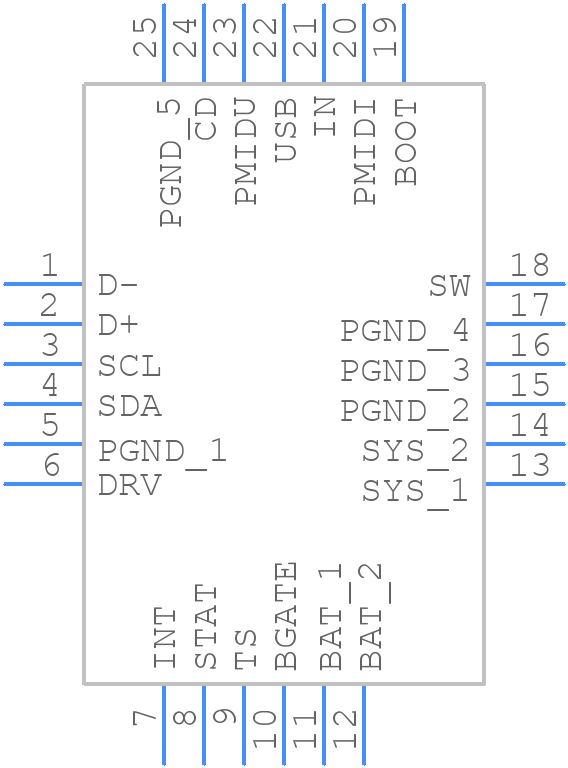

Symbol
BQ24160RGER - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ24160RGER - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGE0024H-1
click to zoom
3D Models
BQ24160RGER - Texas Instruments - 3D model - Quad Flat No-Lead - RGE0024H-1
click to zoom

BQ24160RGER Details

  • Manufacturer Part Number:

    BQ24160RGER

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    24

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • Input Voltage-Max:

    10 V

  • Input Voltage-Min:

    4.2 V

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    5 mA

  • Supply Voltage-Max (Vsup):

    10 V

  • Supply Voltage-Min (Vsup):

    4.2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +3.8V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

BQ24160RGER Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output capacitors close to the IC, and use short, wide traces for the power paths. Avoid routing sensitive analog signals near the power paths.
  • Choose input and output capacitors with low ESR and high ripple current ratings. Select a suitable inductor with high saturation current and low DCR. The datasheet provides guidelines for component selection, but you may need to consult the component manufacturers' datasheets for specific recommendations.
  • The BQ24160RGER is rated for operation from -40°C to 85°C. However, the device's performance and reliability may degrade at extreme temperatures. Ensure proper thermal design and heat sinking to maintain a safe operating temperature.
  • The BQ24160RGER has a built-in overcurrent protection feature. You can set the overcurrent threshold by selecting the appropriate resistor value for the OCSET pin. The datasheet provides a formula to calculate the resistor value based on the desired overcurrent threshold.
  • Yes, the BQ24160RGER is AEC-Q100 qualified and suitable for automotive and high-reliability applications. However, you must ensure that your design meets the specific requirements of your application, including environmental and reliability standards.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BQ24160RGER Overview

Use the download button to access the BQ24160RGER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ241, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
