Texas Instruments provides a recommended layout and placement guide in the application note SLUA444, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The BQ24161BRGER has several configuration options for different charging scenarios, such as USB-OTG, USB-BC, and proprietary charging. The device can be configured using external resistors on the I2C interface or through software control using the I2C interface. Refer to the application note SLUA443 for more information.
The BQ24161BRGER has a maximum current rating of 2.5A, but this can be limited by the external components, such as the FETs and inductors, used in the design. It's essential to ensure that the external components are rated for the desired maximum current to prevent overheating and damage.
The BQ24161BRGER has built-in OVP and OCP features that can be configured using external resistors or through software control. The device can detect over-voltage conditions and limit the input current to prevent damage. It also has a programmable OCP threshold to prevent excessive current draw.
Yes, the BQ24161BRGER can be used in a battery-only configuration, but it requires an external power path controller to manage the battery charging and discharging. The device can be configured to operate in a battery-only mode using the I2C interface or external resistors.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ24161BRGER Overview

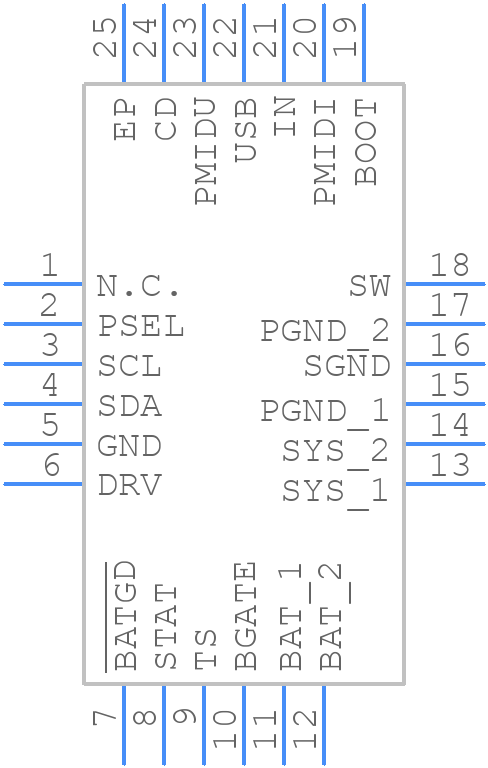

Use the download button to access the BQ24161BRGER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ241,
or try a keyword search, such as Power Management Circuits
