BQ24161BRGET - Texas Instruments

Description: 2.5A, Dual-Input, Single Cell Switchmode Li-Ion Battery Charger with Power Path*

Download BQ24161BRGET Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

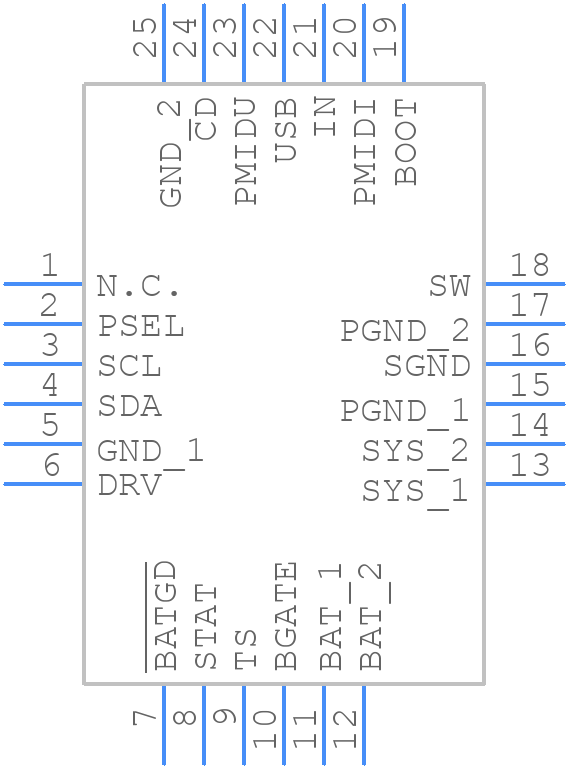

BQ24161BRGET - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ24161BRGET - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGE0024H-2021
click to zoom
3D Models
BQ24161BRGET - Texas Instruments - 3D model - Quad Flat No-Lead - RGE0024H-2021
click to zoom

BQ24161BRGET Details

  • Manufacturer Part Number:

    BQ24161BRGET

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • Input Voltage-Max:

    10 V

  • Input Voltage-Min:

    4.2 V

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    5 mA

  • Supply Voltage-Max (Vsup):

    10 V

  • Supply Voltage-Min (Vsup):

    4.2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +3.8V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

BQ24161BRGET Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the BQ24161BRGET involves placing the device close to the battery, using a solid ground plane, and keeping the input and output capacitors close to the device. Additionally, the device should be placed away from high-current carrying traces and heat sources.
  • To optimize the charging current for your specific battery, you can adjust the resistor values of R_ILIM and R_ISET to set the charging current. You can also use the EN pin to dynamically adjust the charging current based on the battery's state of charge.
  • The BQ24161BRGET has a thermal shutdown feature that turns off the device when the junction temperature exceeds 150°C. To minimize thermal issues, ensure good airflow, use a heat sink if necessary, and avoid blocking the thermal pad on the bottom of the device.
  • The BQ24161BRGET has a built-in OVP feature that can be enabled by connecting the OVP pin to a voltage source. You can also use an external OVP circuit with a zener diode and a resistor to provide additional protection.
  • While the BQ24161BRGET is optimized for Li-ion batteries, it can be used with other battery chemistries with some modifications. However, you may need to adjust the charging voltage and current profiles, and ensure that the device's protection features are compatible with the battery chemistry.
