Texas Instruments provides a recommended layout and placement guide in the application note SLUA444, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The BQ24180YFFT has a programmable charging profile, and Texas Instruments provides a charging profile optimization tool, the BQ24180YFFT EVM GUI, which allows you to customize the charging profile for your specific battery chemistry. You can also refer to the application note SLUA443 for more information on charging profile optimization.
The BQ24180YFFT has an operating ambient temperature range of -40°C to 85°C, but it's recommended to derate the device's performance at high temperatures. Refer to the datasheet for more information on thermal derating and design considerations.
Yes, the BQ24180YFFT can be used with battery packs that have multiple cells in series and/or parallel. However, you'll need to ensure that the battery pack's total voltage and current ratings are within the device's specifications, and that you've implemented proper cell balancing and monitoring to prevent overcharge or over-discharge of individual cells.
The BQ24180YFFT has built-in OVP and UVP features, but you'll need to implement external circuitry to detect and respond to overvoltage and undervoltage conditions. Texas Instruments provides guidelines and example circuits in the application note SLUA442 for implementing OVP and UVP with the BQ24180YFFT.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ24180YFFT Overview

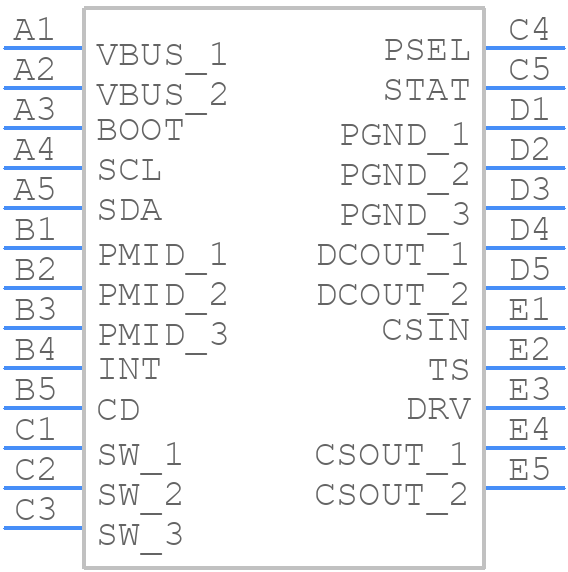

Use the download button to access the BQ24180YFFT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ241,
or try a keyword search, such as Power Management Circuits
