BQ24192RGET - Texas Instruments

Description: I2C Controlled 4.5A Single Cell USB/Adaptor Charger w/ Narrow VDC Power Path

Download BQ24192RGET Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

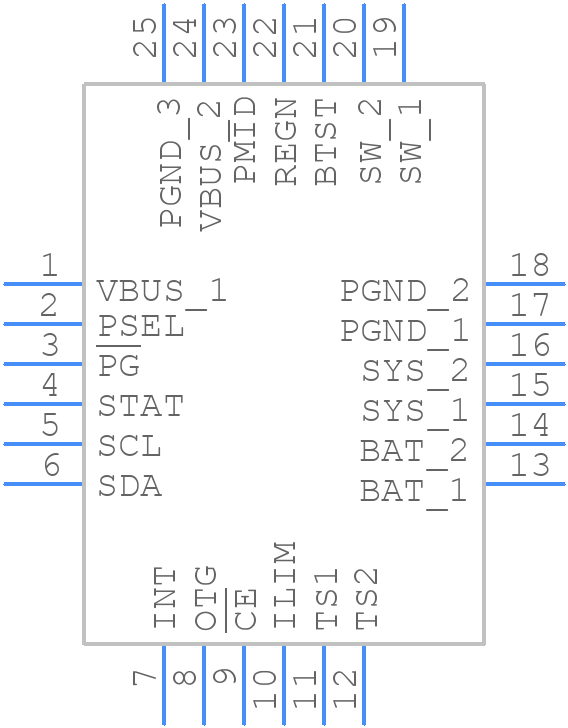

BQ24192RGET - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ24192RGET - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGE0024H-1
click to zoom
3D Models
BQ24192RGET - Texas Instruments - 3D model - Quad Flat No-Lead - RGE0024H-1
click to zoom

BQ24192RGET Details

  • Manufacturer Part Number:

    BQ24192RGET

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    DETECTION THRESHOLD VOLTAGE IS 3.8V

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • Input Voltage-Max:

    17 V

  • Input Voltage-Min:

    3.9 V

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    3 mA

  • Supply Voltage-Max (Vsup):

    17 V

  • Supply Voltage-Min (Vsup):

    3.9 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +18V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

BQ24192RGET Frequently Asked Questions (FAQs)

  • A good PCB layout for the BQ24192RGET involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. TI provides a recommended PCB layout in the datasheet and application notes.
  • The selection of input and output capacitors for the BQ24192RGET depends on the specific application requirements. TI recommends using low-ESR capacitors with a minimum capacitance of 10uF for the input and output. The capacitor selection guide in the datasheet provides more information.
  • The BQ24192RGET can handle input voltages up to 18V, but it is recommended to operate within the specified input voltage range of 4.5V to 12V for optimal performance and reliability.
  • The BQ24192RGET output voltage can be configured using the EN/DVS pin. By connecting a resistor divider network between the EN/DVS pin and the output voltage, the output voltage can be set to a specific value. The datasheet provides more information on the resistor values required for different output voltages.
  • The BQ24192RGET has a thermal pad that must be connected to a solid ground plane to ensure effective heat dissipation. A thermal via or a thermal pad on the PCB can be used to dissipate heat. The datasheet provides more information on thermal management.
