The recommended layout and placement for the BQ24193RGER can be found in the Texas Instruments application note 'BQ24193RGER Layout and Placement Guidelines' (SLUA645). It provides guidance on component placement, routing, and thermal management to ensure optimal performance and reliability.
The BQ24193RGER has a programmable charging profile, and optimizing it for your specific battery requires understanding the battery's characteristics, such as its chemistry, capacity, and charging requirements. Consult the battery manufacturer's datasheet and the BQ24193RGER datasheet to determine the optimal charging profile. You can also use Texas Instruments' battery management software tools to help optimize the charging profile.
The BQ24193RGER has a maximum junction temperature of 125°C. Ensure good thermal design practices, such as providing adequate heat sinking, using thermal vias, and keeping the device away from heat sources. Consult the datasheet for thermal resistance and power dissipation information to ensure reliable operation.
The BQ24193RGER has built-in OVP and UVP features. To implement them, connect the OVP and UVP pins to the desired voltage threshold levels using external resistors and configure the device using the I2C interface. Consult the datasheet for specific implementation details and equations to calculate the required resistor values.
The BQ24193RGER is designed to support standard lithium-ion and lithium-polymer battery chemistries. For non-standard battery chemistries, consult the battery manufacturer's datasheet and the BQ24193RGER datasheet to determine compatibility. You may need to modify the charging profile and protection settings to ensure safe and reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ24193RGER Overview

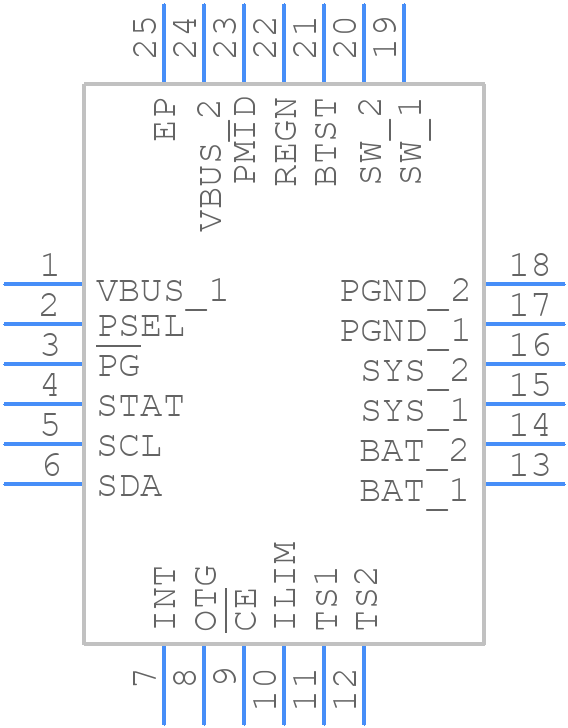

Use the download button to access the BQ24193RGER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ241,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
