BQ24193RGET - Texas Instruments

Description: I2C Controlled 4.5A Single Cell USB/Adaptor Charger w/ Narrow VDC Power Path

Download BQ24193RGET Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

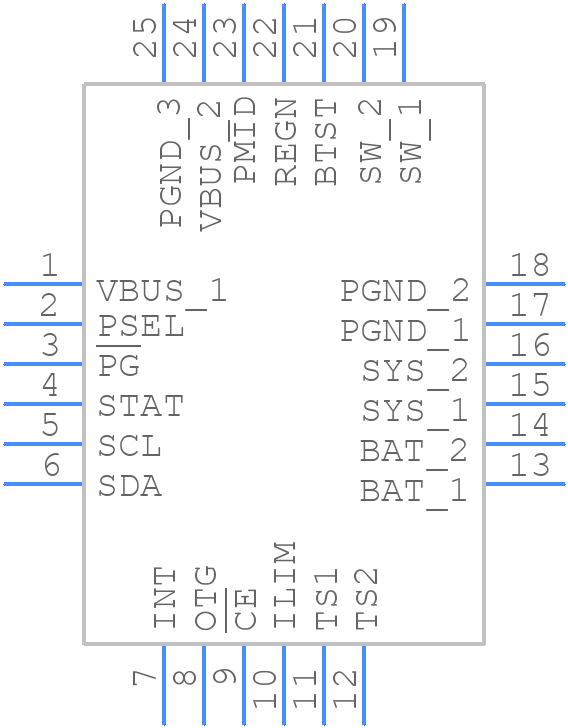

BQ24193RGET - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ24193RGET - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGE0024H_2020
click to zoom
3D Models
BQ24193RGET - Texas Instruments - 3D model - Quad Flat No-Lead - RGE0024H_2020
click to zoom

BQ24193RGET Details

  • Manufacturer Part Number:

    BQ24193RGET

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    DETECTION THRESHOLD VOLTAGE IS 3.8V

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • Input Voltage-Max:

    17 V

  • Input Voltage-Min:

    3.9 V

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    3 mA

  • Supply Voltage-Max (Vsup):

    17 V

  • Supply Voltage-Min (Vsup):

    3.9 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +18V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

BQ24193RGET Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the BQ24193RGET can be found in the Texas Instruments application note 'BQ24193RGET Layout and Placement Guidelines' (SLUA645). It is essential to follow these guidelines to ensure proper operation and minimize electromagnetic interference (EMI).
  • The BQ24193RGET has a programmable charging profile, and the optimal profile depends on the specific battery chemistry and characteristics. TI provides a charging profile optimization tool (SWRA391) that can help engineers customize the charging profile for their specific battery.
  • The BQ24193RGET has a thermal shutdown feature that protects the device from overheating. However, it is still essential to ensure good thermal design and heat dissipation in the system. TI recommends following the thermal design guidelines in the datasheet and application notes to ensure reliable operation.
  • The BQ24193RGET has a built-in OVP feature, but it requires external components to implement. TI provides a reference design and application note (SLUA644) that details the implementation of OVP with the BQ24193RGET.
  • The BQ24193RGET is designed to minimize EMI, but proper layout, placement, and shielding are still essential to ensure compliance with EMI regulations. TI provides guidelines for EMI reduction in the application note 'BQ24193RGET EMI Reduction Techniques' (SLUA646).

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BQ24193RGET Overview

Use the download button to access the BQ24193RGET schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ241, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
