BQ24210DQCR - Texas Instruments

Description: Battery Management 800mA,Sgl-Inp,Li-Ion Solar Batt Charger

Download BQ24210DQCR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

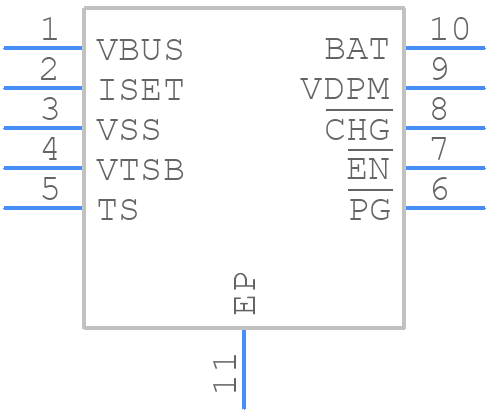

BQ24210DQCR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ24210DQCR - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DQC001A+
click to zoom
3D Models
BQ24210DQCR - Texas Instruments - 3D model - Small Outline No-lead - DQC001A+
click to zoom

BQ24210DQCR Details

  • Manufacturer Part Number:

    BQ24210DQCR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Pin Count:

    10

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • Input Voltage-Max:

    7 V

  • Input Voltage-Min:

    3.5 V

  • JESD-30 Code:

    R-PDSO-N10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    1.2 mA

  • Supply Voltage-Max (Vsup):

    7 V

  • Supply Voltage-Min (Vsup):

    3.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +3.3V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

BQ24210DQCR Frequently Asked Questions (FAQs)

  • A good PCB layout for the BQ24210DQCR involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. TI provides a recommended layout in the datasheet and application notes.
  • The inductor value depends on the input voltage, output voltage, and maximum current. TI provides an inductor selection guide in the datasheet, and online tools like the TI Power Designer can help with inductor selection.
  • The BQ24210DQCR is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and thermal design. Consult the datasheet and thermal design guidelines for more information.
  • Yes, the BQ24210DQCR is AEC-Q100 qualified and suitable for automotive and high-reliability applications. However, additional testing and validation may be required for specific use cases.
  • The BQ24210DQCR has a built-in OVP feature that can be enabled by connecting the OVP pin to a voltage divider. The OVP threshold is set by the voltage on the OVP pin, and the device will shut down if the input voltage exceeds this threshold.
