BQ24253RGET - Texas Instruments

Description: 2A Single Input I2C/Standalone Switch-Mode Li-Ion Battery Charger

Download BQ24253RGET Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

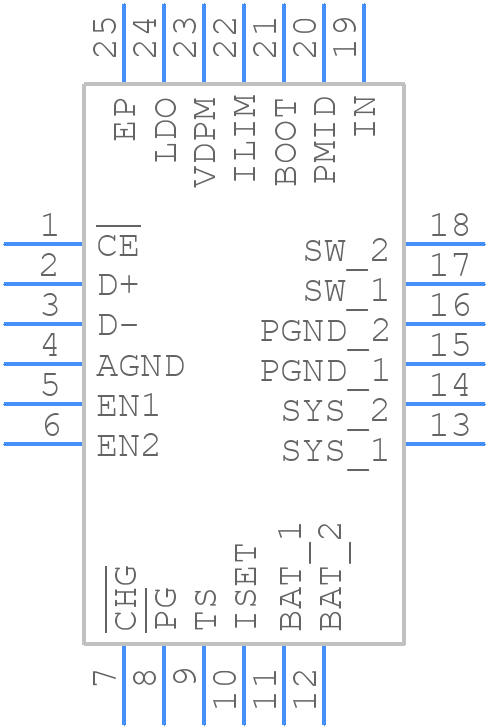

BQ24253RGET - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ24253RGET - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - VQFN
click to zoom
3D Models
BQ24253RGET - Texas Instruments - 3D model - Quad Flat No-Lead - VQFN
click to zoom

BQ24253RGET Details

  • Manufacturer Part Number:

    BQ24253RGET

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • Input Voltage-Max:

    10.5 V

  • Input Voltage-Min:

    4.35 V

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.88 mm

  • Supply Current-Max (Isup):

    5 mA

  • Supply Voltage-Max (Vsup):

    10.5 V

  • Supply Voltage-Min (Vsup):

    4.35 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +3.35V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

BQ24253RGET Frequently Asked Questions (FAQs)

  • A good PCB layout for the BQ24253RGET involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. A 4-layer PCB with a dedicated power plane is recommended.
  • The inductor value depends on the input voltage, output voltage, and maximum current. A good starting point is to use the inductor selection guide in the datasheet, and then fine-tune the value based on the specific application requirements.
  • The BQ24253RGET is rated for operation from -40°C to 85°C. However, the device can be operated at higher temperatures with derating, but this may affect its reliability and lifespan.
  • Yes, the BQ24253RGET is suitable for battery-powered applications. It has a low quiescent current and can operate from a single-cell Li-ion battery. However, the device's power-save mode should be used to minimize power consumption when the battery is not charging.
  • The BQ24253RGET has a built-in OVP feature that can be enabled by connecting the OVP pin to a voltage divider network. The OVP threshold can be set by selecting the appropriate resistor values in the voltage divider.
