Texas Instruments provides a recommended layout and placement guide in the application note SLUA444, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The BQ24260RGER can be configured for different charging profiles using the I2C interface. The device has several registers that can be programmed to set the charging voltage, current, and termination conditions. The datasheet provides a detailed description of the registers and their functions, and the application note SLUA443 provides examples of how to configure the device for different charging profiles.
The BQ24260RGER can handle input voltages up to 20V, but it is recommended to limit the input voltage to 18V to ensure reliable operation and to prevent damage to the device. The device has an overvoltage protection (OVP) feature that will shut down the device if the input voltage exceeds 20V.
The BQ24260RGER has a built-in battery detection feature that can detect the presence or absence of a battery. When a battery is inserted, the device will automatically start charging the battery. When the battery is removed, the device will enter a low-power shutdown mode to conserve power. The device also has a feature to detect battery removal during charging and will automatically stop charging to prevent damage to the battery.
The EN (enable) pin is used to enable or disable the charging function of the BQ24260RGER. When the EN pin is high, the device is enabled and will start charging the battery. When the EN pin is low, the device is disabled and will not charge the battery. The EN pin can be used to implement a power button or a charging enable signal in the system.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ24260RGER Overview

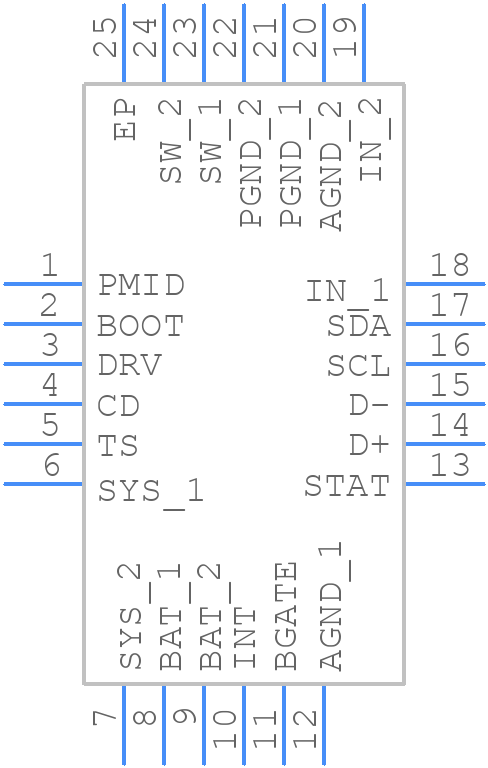

Use the download button to access the BQ24260RGER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ242,
or try a keyword search, such as Power Management Circuits
