Texas Instruments provides a recommended layout and placement guide in the application note SLUA444, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The BQ24292IRGET can be configured for different charging scenarios using the I2C interface. The device has several registers that can be programmed to set the charging voltage, current, and timer settings. The datasheet provides a detailed description of the registers and their functions. Additionally, Texas Instruments provides a GUI-based configuration tool, the BQ2429x GUI, which can be used to configure and monitor the device.
The BQ24292IRGET is rated for operation over a temperature range of -40°C to 85°C. However, the device can be operated at temperatures above 85°C with derating. The datasheet provides a thermal derating curve that shows the maximum junction temperature and power dissipation at different ambient temperatures.
To ensure safe and reliable charging with the BQ24292IRGET, it is essential to follow proper design and layout guidelines, including using a thermistor to monitor the battery temperature, implementing overvoltage and undervoltage protection, and using a fuse or current limiter to prevent overcurrent conditions. Additionally, the device has built-in safety features such as overcharge protection, over-discharge protection, and short-circuit protection.
The BQ24292IRGET is designed for single-cell Li-ion battery charging. However, it can be used for charging multiple cells in parallel by using multiple devices or by using an external multiplexer to connect multiple cells to a single device. Texas Instruments provides an application note, SLUA445, that describes a multi-cell charging solution using the BQ24292IRGET.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ24292IRGET Overview

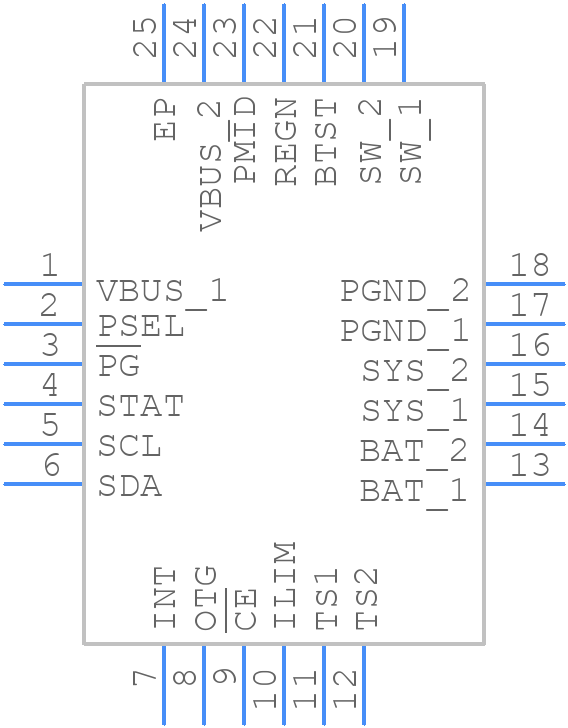

Use the download button to access the BQ24292IRGET schematic symbol, PCB footprint, and 3D model.
