A good PCB layout for the BQ24616RGET involves keeping the high-current paths short and wide, using a solid ground plane, and placing the input capacitors close to the device. TI provides a recommended layout in the datasheet and application notes.
The selection of external components depends on the specific application requirements, such as output voltage, current, and switching frequency. TI provides a component selection guide in the datasheet and application notes, and online tools like the TI Power Stage Designer can also be used to aid in component selection.
The BQ24616RGET has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate heat sinking, use a thermal interface material, and follow the recommended PCB layout guidelines. Additionally, the device has built-in thermal protection, which will shut down the device if the junction temperature exceeds 160°C.
The BQ24616RGET has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor divider network. The device will shut down if the output current exceeds the programmed threshold. The datasheet provides more information on how to implement overcurrent protection.
Yes, the BQ24616RGET can be used in a synchronous rectification configuration to improve efficiency. TI provides application notes and design examples that demonstrate how to implement synchronous rectification with the BQ24616RGET.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ24616RGET Overview

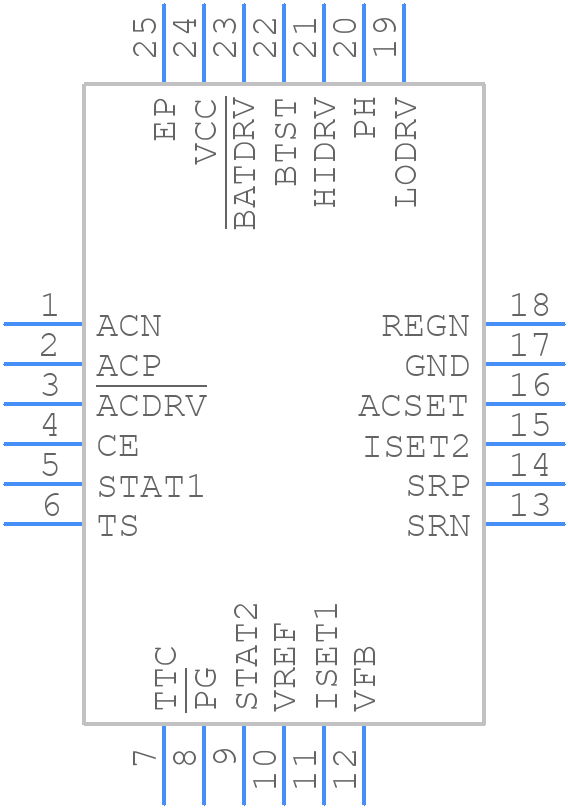

Use the download button to access the BQ24616RGET schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ246,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
