A good PCB layout for the BQ24650RVAR involves placing the device close to the battery, using a solid ground plane, and keeping the high-current paths short and wide. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane for the battery voltage.
The selection of external components depends on the specific application requirements. For the inductor, consider the maximum current rating, inductance value, and DC resistance. For capacitors, choose ones with a high capacitance value, low ESR, and a voltage rating that exceeds the maximum battery voltage. TI provides a component selection guide in the datasheet and application notes.
The BQ24650RVAR is rated for operation from -40°C to 125°C. High temperatures can affect the device's performance, reducing its efficiency and increasing its power losses. Ensure proper thermal design and heat sinking to maintain a safe operating temperature.
The BQ24650RVAR has a built-in overcurrent protection feature. Set the OCP threshold by selecting the appropriate resistor value for the ROC pin. The recommended OCP threshold is 1.5 to 2 times the maximum expected charging current. Adjust the OCP delay time by selecting the appropriate capacitor value for the COCP pin.
Yes, the BQ24650RVAR can be used for charging multiple batteries in parallel. Connect the batteries in parallel, ensuring they have the same voltage and chemistry. Use a single BQ24650RVAR device to charge the parallel battery configuration. However, be aware that the device's current rating and power dissipation may limit the number of batteries that can be charged in parallel.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ24650RVAR Overview

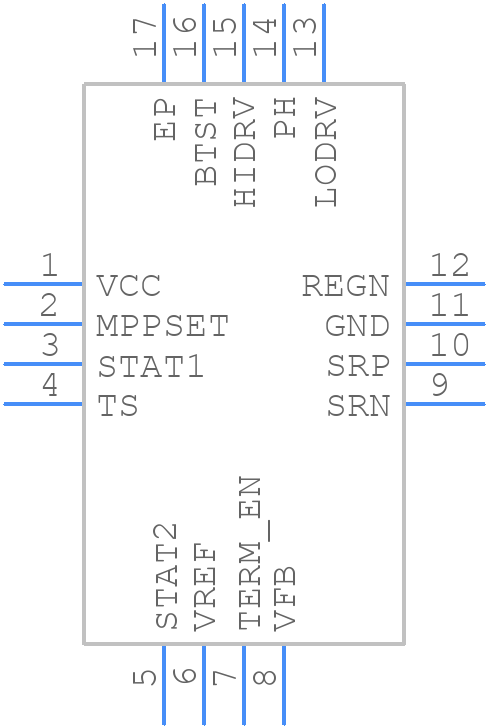

Use the download button to access the BQ24650RVAR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ246,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
