BQ24650RVAT - Texas Instruments

Description: Battery Charge Controller MPPT VQFN16 Texas Instruments BQ24650RVAT, Battery Charge Controller Lead-Acid, Lithium, Lithium-Ion, Lithium-Polymer, 16-Pin VQFN

Download BQ24650RVAT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

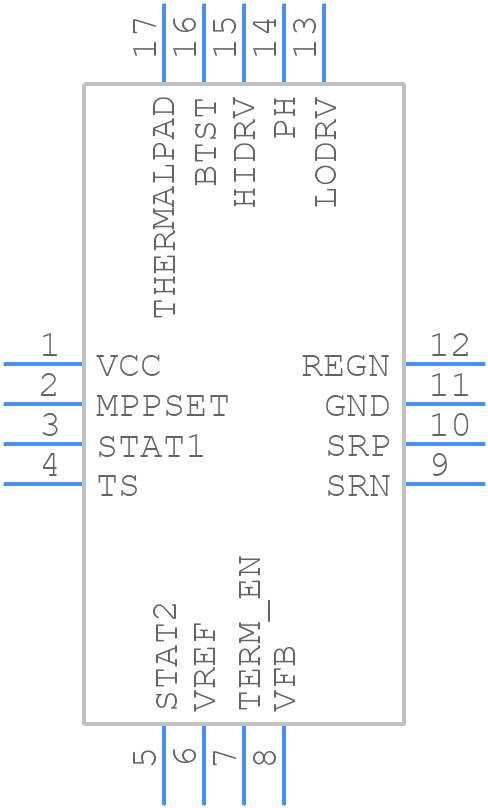

BQ24650RVAT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ24650RVAT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RVA (S-PVQFN-N16)
click to zoom
3D Models
BQ24650RVAT - Texas Instruments - 3D model - Quad Flat No-Lead - RVA (S-PVQFN-N16)
click to zoom

BQ24650RVAT Details

  • Manufacturer Part Number:

    BQ24650RVAT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    BATTERY MONITOR/PROTECTOR

  • Input Voltage-Max:

    28 V

  • Input Voltage-Min:

    5 V

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    3.5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.14SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    3 mA

  • Supply Voltage-Max (Vsup):

    28 V

  • Supply Voltage-Min (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +3.85V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.5 mm

BQ24650RVAT Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the high-current paths short and wide, and use thermal vias to dissipate heat. Refer to the TI application note 'BQ24650 PCB Layout Guidelines' for more details.
  • Choose an inductor with a high saturation current rating, low DC resistance, and a suitable inductance value (e.g., 1-10 μH). Consider the peak current, switching frequency, and output voltage when selecting the inductor. TI's 'Inductor Selection Guide' can help with the selection process.
  • Use a low-ESR ceramic capacitor (e.g., X5R or X7R) with a value between 4.7 μF to 10 μF. The capacitor should be rated for the input voltage and have a low impedance at the switching frequency.
  • Use the FB pin to set the output voltage. Connect a resistive divider from the output voltage to the FB pin, and calculate the resistor values using the formula provided in the datasheet. The output voltage can be adjusted from 0.8 V to 5.5 V.
  • The maximum ambient temperature for the BQ24650RVAT is 85°C. However, the device can operate up to 125°C junction temperature. Ensure proper thermal design and heat dissipation to maintain a safe operating temperature.
