BQ25071DQCR - Texas Instruments

Description: Linear Battery Charger Li-FePO4 1000mA 3.5V 10-Pin WSON EP T/R

Download BQ25071DQCR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

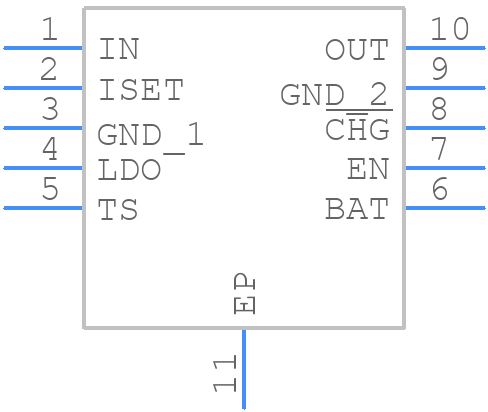

BQ25071DQCR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ25071DQCR - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DQC0010A
click to zoom
3D Models
BQ25071DQCR - Texas Instruments - 3D model - Small Outline No-lead - DQC0010A
click to zoom

BQ25071DQCR Details

  • Manufacturer Part Number:

    BQ25071DQCR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    RECHARGE DETECTION THRESHOLD IS 3.3V

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • Input Voltage-Max:

    10.2 V

  • Input Voltage-Min:

    3.75 V

  • JESD-30 Code:

    R-PDSO-N10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    1 mA

  • Supply Voltage-Max (Vsup):

    10.2 V

  • Supply Voltage-Min (Vsup):

    3.75 V

  • Supply Voltage-Nom (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +3.5V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

BQ25071DQCR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general guidelines for switching regulator layouts, such as keeping the input and output capacitors close to the IC, and using a solid ground plane to reduce noise and EMI.
  • The datasheet provides a list of recommended inductors, but you can also use the following guidelines: choose an inductor with a high saturation current, low DC resistance, and a suitable inductance value based on the switching frequency and output current requirements.
  • The datasheet specifies a maximum input voltage of 18V, but it's recommended to derate this value based on the specific application and operating conditions to ensure reliable operation.
  • The BQ25071DQCR has a built-in OVP feature that can be enabled by connecting the OVP pin to a voltage divider network that sets the OVP threshold. The datasheet provides more details on how to implement OVP.
  • The thermal derating curve is not explicitly provided in the datasheet, but it can be obtained from Texas Instruments' application notes or by contacting their technical support. The curve provides information on how to derate the device's performance based on the operating temperature.
