A good PCB layout for the BQ25120YFPR involves placing the device close to the battery, using a solid ground plane, and keeping the input and output capacitors close to the device. Additionally, it's recommended to use a separate power plane for the battery and the system, and to minimize the length of the traces between the device and the capacitors.
The selection of external components for the BQ25120YFPR depends on the specific application requirements. For example, the input capacitor should be selected based on the input voltage and current requirements, while the output capacitor should be selected based on the output voltage and current requirements. The datasheet provides guidelines for selecting the external components, and TI also provides a web-based tool to help with component selection.
The BQ25120YFPR has a thermal shutdown feature that turns off the device when the junction temperature exceeds 150°C. To ensure reliable operation, it's recommended to keep the device junction temperature below 125°C. This can be achieved by providing adequate heat sinking, using a thermal pad, and ensuring good airflow around the device.
Troubleshooting issues with the BQ25120YFPR involves checking the input voltage, output voltage, and current consumption. It's also recommended to check the device's thermal performance, and to verify that the external components are properly selected and connected. TI also provides a troubleshooting guide and application notes to help with debugging.
The BQ25120YFPR is designed to minimize EMI, but it's still important to follow good PCB layout practices to minimize radiation. This includes using a solid ground plane, keeping the input and output traces short, and using shielding if necessary. Additionally, it's recommended to use a common-mode choke and a ferrite bead to filter the input and output signals.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
BQ25120YFPR Overview

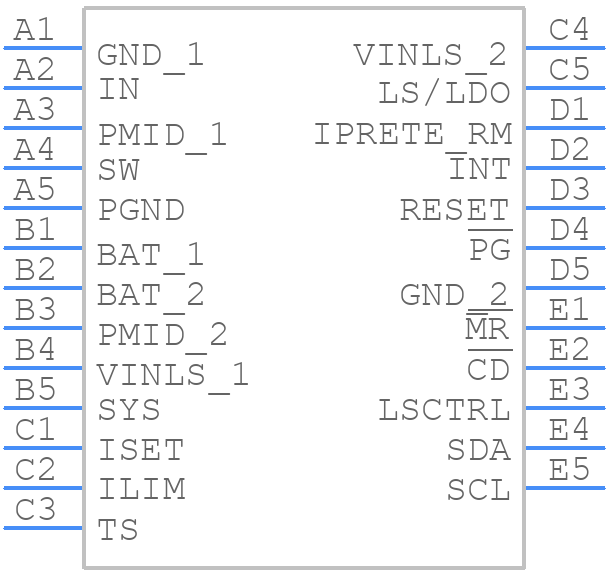

Use the download button to access the BQ25120YFPR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ251,
or try a keyword search, such as Power Management Circuits
