Part Image

BQ25150YFPR - Texas Instruments

Description: Low IQ linear battery charge management solution with LDO and ADC

Download BQ25150YFPR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

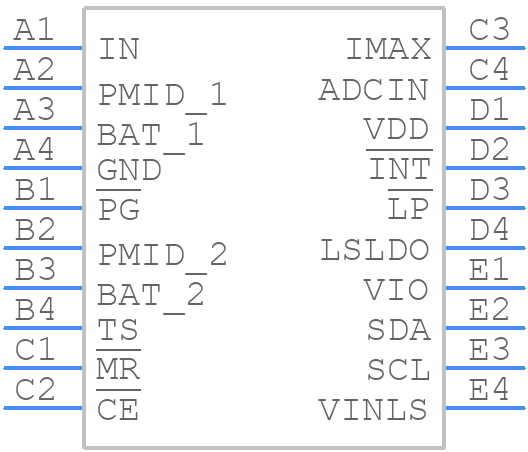

BQ25150YFPR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ25150YFPR - Texas Instruments PCB footprint - BGA - BGA - YFP0020-1
click to zoom
3D Models
BQ25150YFPR - Texas Instruments - 3D model - BGA - YFP0020-1
click to zoom

BQ25150YFPR Details

  • Manufacturer Part Number:

    BQ25150YFPR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2019-02-10

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    3.4 V

  • JESD-30 Code:

    R-PBGA-B20

  • JESD-609 Code:

    e1

  • Length:

    2.015 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA20,4X5,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.5 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    3.15 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.615 mm

BQ25150YFPR Frequently Asked Questions (FAQs)

  • A good PCB layout for the BQ25150YFPR involves placing the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. TI provides a recommended PCB layout in the datasheet and application notes.
  • The selection of input and output capacitors for the BQ25150YFPR depends on the specific application requirements. TI recommends using low-ESR capacitors with a minimum capacitance of 10uF for the input and output. The capacitor selection guide in the datasheet provides more information.
  • The BQ25150YFPR is rated for operation from -40°C to 85°C. However, the device can be operated at higher temperatures with derating. Consult the datasheet for more information on temperature derating.
  • The BQ25150YFPR has a built-in overcurrent protection feature. To implement it, connect a sense resistor in series with the output and connect the sense pin to the device. The device will limit the output current to the programmed value. Consult the datasheet for more information on overcurrent protection.
  • Yes, the BQ25150YFPR is suitable for high-reliability applications. It is built with a robust design and has undergone rigorous testing to ensure its reliability. TI also provides a reliability report and other resources to support high-reliability applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BQ25150YFPR Overview

Use the download button to access the BQ25150YFPR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ251, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
