BQ25150YFPT - Texas Instruments

Description: Low IQ linear battery charge management solution with LDO and ADC

Download BQ25150YFPT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

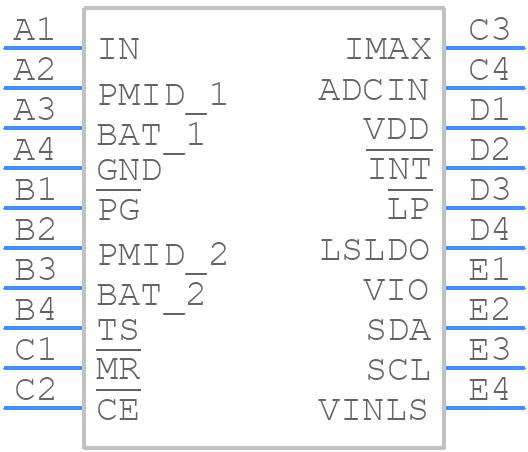

Symbol
BQ25150YFPT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ25150YFPT - Texas Instruments PCB footprint - BGA - BGA - YFP0020-1
click to zoom
3D Models
BQ25150YFPT - Texas Instruments - 3D model - BGA - YFP0020-1
click to zoom

BQ25150YFPT Details

  • Manufacturer Part Number:

    BQ25150YFPT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2019-02-10

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    3.4 V

  • JESD-30 Code:

    R-PBGA-B20

  • JESD-609 Code:

    e1

  • Length:

    2.015 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA20,4X5,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.5 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    3.15 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.615 mm

BQ25150YFPT Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Place the IC near the battery and keep the high-current paths short and wide. Use thermal vias to connect the IC's thermal pad to the ground plane.
  • Choose components with low ESR and high ripple current ratings. For the inductor, select one with a high saturation current and low DCR. For the capacitor, choose one with a high capacitance and low ESR. Refer to the datasheet for specific recommendations.
  • The BQ25150YFPT is rated for operation from -40°C to 85°C. However, the device may still function outside this range, but with reduced performance and reliability.
  • Use an oscilloscope to monitor the input and output voltages, and the switch node voltage. Check for proper PCB layout, component selection, and thermal management. Consult the datasheet and application notes for troubleshooting guides.
  • Yes, the BQ25150YFPT is AEC-Q100 qualified and suitable for automotive and high-reliability applications. However, ensure that the device is used within its specified operating conditions and that the system is designed with adequate safety margins.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BQ25150YFPT Overview

Use the download button to access the BQ25150YFPT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ251, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
