Texas Instruments provides a recommended layout and placement guide in the application note SLUA645, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The BQ25600CYFFR has a programmable charging profile, and Texas Instruments provides a charging profile optimization tool, the BQ25600 Charging Profile Optimization Tool, which helps engineers optimize the charging profile for their specific battery chemistry and capacity.
While the datasheet specifies a maximum input voltage of 18V, it's recommended to limit the input voltage to 15V to ensure reliable operation and prevent damage to the device. Higher input voltages may cause excessive heat generation and reduce the device's lifespan.
The BQ25600CYFFR has built-in safety features such as overcharge protection, over-discharge protection, and short-circuit protection. Additionally, engineers can implement external safety mechanisms, such as a thermistor to monitor battery temperature, to ensure safe charging and prevent overcharging or undercharging of the battery.
While the BQ25600CYFFR is optimized for Li-ion batteries, it can be used with other battery chemistries with some modifications to the charging profile and external components. However, it's essential to consult the datasheet and application notes for specific guidance on using the device with alternative battery chemistries.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ25600CYFFR Overview

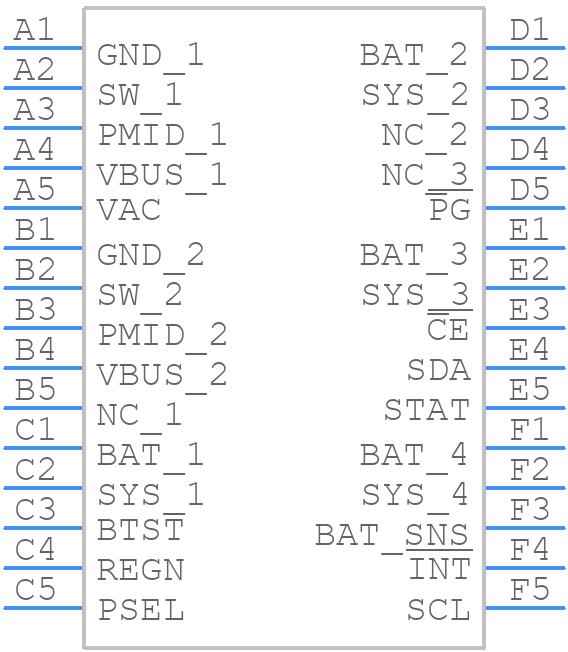

Use the download button to access the BQ25600CYFFR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ256,
or try a keyword search, such as Power Management Circuits
