Texas Instruments provides a recommended layout and placement guide in the application note SLUA645, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The BQ25600CYFFT can be configured for different charging scenarios using the I2C interface. The device has several registers that can be programmed to set the charging voltage, current, and timer settings. The datasheet provides a detailed description of the registers and their functions. Additionally, Texas Instruments provides a GUI-based configuration tool, the BQ25600EVM-GUI, which can be used to configure and monitor the device.
The BQ25600CYFFT is rated for operation over a temperature range of -40°C to 85°C. However, the device can be operated at temperatures above 85°C with derating. The datasheet provides a thermal derating curve that shows the maximum junction temperature and power dissipation at different ambient temperatures.
To ensure safe and reliable charging with the BQ25600CYFFT, it is essential to follow proper design and layout guidelines, including using a thermistor to monitor the battery temperature, implementing overvoltage and undervoltage protection, and using a fuse or current limiter to prevent overcurrent conditions. Additionally, the device has built-in safety features such as overcharge protection, over-discharge protection, and short-circuit protection.
Yes, the BQ25600CYFFT can be used for charging multiple batteries in parallel. The device has a built-in current balancer that ensures that the charging current is distributed evenly across multiple batteries. However, it is essential to follow proper design and layout guidelines to ensure that the batteries are properly connected and that the charging current is within the device's rating.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ25600CYFFT Overview

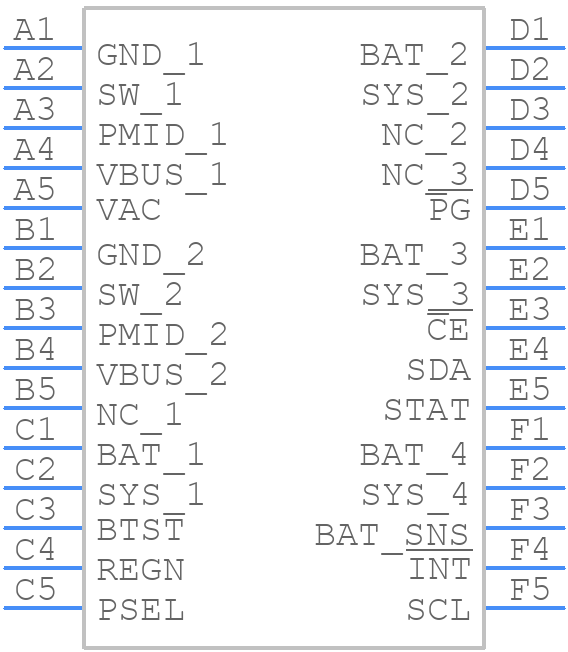

Use the download button to access the BQ25600CYFFT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ256,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
