BQ25713BRSNT - Texas Instruments

Description: Battery Management NVDC I2C Battery Buck-Boost Charge Controller with System Power Monitor & Processor 32-QFN -40 to 85

Download BQ25713BRSNT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

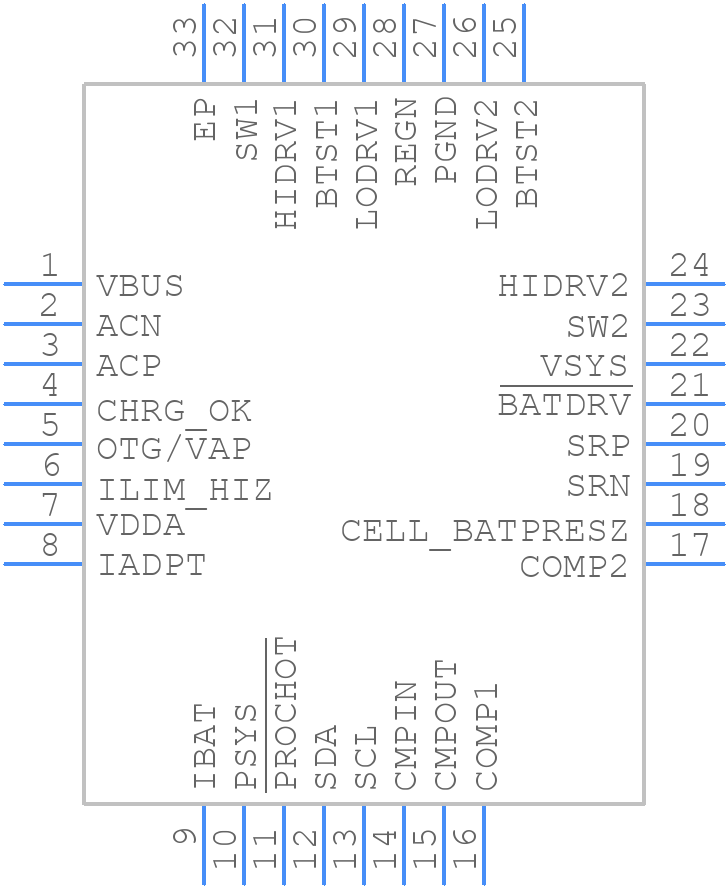

BQ25713BRSNT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ25713BRSNT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - BQ25713BRSNT
click to zoom
3D Models
BQ25713BRSNT - Texas Instruments - 3D model - Quad Flat No-Lead - BQ25713BRSNT
click to zoom

BQ25713BRSNT Details

  • Manufacturer Part Number:

    BQ25713BRSNT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    BATTERY MONITOR/PROTECTOR

  • Input Voltage-Max:

    24 V

  • Input Voltage-Min:

    3.5 V

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    26 V

  • Supply Voltage-Min (Vsup):

    3.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

BQ25713BRSNT Frequently Asked Questions (FAQs)

  • A good PCB layout for the BQ25713BRSNT involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. TI provides a recommended PCB layout in the datasheet and application notes.
  • Optimizing the compensation network for the BQ25713BRSNT involves selecting the right values for the compensation resistors and capacitors. TI provides a compensation calculator tool to help with this process. Additionally, the datasheet provides guidelines for selecting the compensation components.
  • The BQ25713BRSNT can handle input voltages up to 22V, but it's recommended to keep the input voltage below 18V for optimal performance and to prevent overheating.
  • To ensure the BQ25713BRSNT is operating within its thermal limits, it's essential to provide adequate heat sinking, keep the device away from heat sources, and monitor the junction temperature (TJ) using the thermal monitoring pin (TMP).
  • The recommended input capacitor type for the BQ25713BRSNT is a low-ESR ceramic capacitor with a value between 10uF to 22uF. The exact value depends on the input voltage and the desired level of input ripple rejection.
