A good PCB layout for the BQ25713BRSNR involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. TI provides a recommended layout in the datasheet and application notes.
To select the right inductor for the BQ25713BRSNR, consider the maximum current rating, inductance value, and DC resistance. A good starting point is to use an inductor with a saturation current rating above the maximum output current, and an inductance value between 1-10uH. TI provides a list of recommended inductors in the datasheet.
The BQ25713BRSNR has an operating ambient temperature range of -40°C to 85°C. However, the device can be derated for higher temperatures, and the maximum junction temperature is 125°C.
The BQ25713BRSNR has a fixed output voltage option, but it can be configured for a specific output voltage using an external resistor divider network. The datasheet provides a formula to calculate the required resistor values for a specific output voltage.
The EN (enable) pin on the BQ25713BRSNR is used to enable or disable the device. When the EN pin is pulled high, the device is enabled, and when it is pulled low, the device is disabled. This pin can be used to implement power sequencing or to turn off the device when not in use.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ25713BRSNR Overview

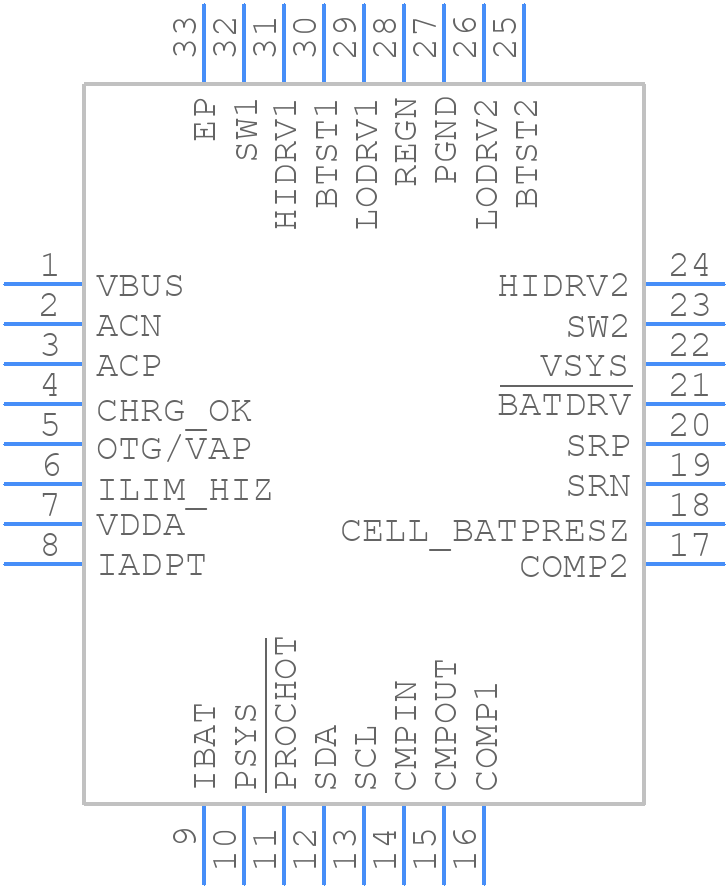

Use the download button to access the BQ25713BRSNR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ257,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
