Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the power traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the IC.
Choose an inductor with a high saturation current rating, low DC resistance, and a suitable inductance value. The datasheet provides a calculation for selecting the inductor value based on the input voltage, output voltage, and switching frequency.
The BQ25798RQMR is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. Ensure proper thermal design and heat sinking to maintain a safe operating temperature.
The BQ25798RQMR is designed for input voltages up to 18V, but it's not recommended for high-voltage applications above 24V. For higher voltage applications, consider using a different device or adding external voltage regulation.
Use an oscilloscope to monitor the input and output voltages, as well as the inductor current. Check the PCB layout, component values, and soldering quality. Consult the datasheet and application notes for troubleshooting guidelines and common pitfalls to avoid.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ25798RQMR Overview

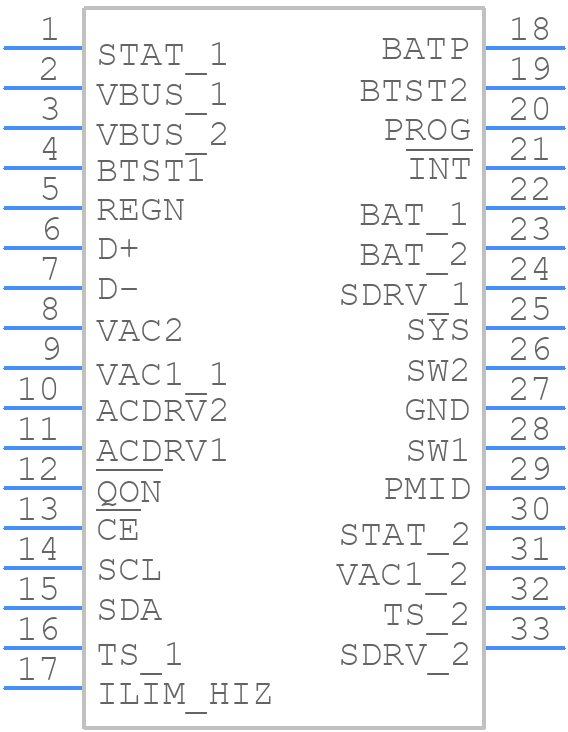

Use the download button to access the BQ25798RQMR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ257,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
