Texas Instruments provides a recommended layout and placement guide in the datasheet, but it's essential to follow the guidelines for thermal management, noise reduction, and signal integrity. A good practice is to keep the input and output capacitors close to the IC, use a solid ground plane, and separate the high-current paths from the low-current paths.
The BQ25820RRVR has a programmable charging current and voltage. You can adjust these parameters using the I2C interface or by using external resistors. Consult the datasheet for the calculation formulas and tables to determine the optimal values for your specific battery. You may also need to consider factors like battery chemistry, capacity, and charging profile.
The EN (Enable) pin is used to enable or disable the charger. When EN is high, the charger is enabled, and when it's low, the charger is disabled. You can use this pin to control the charging process, for example, to prevent charging when the system is in sleep mode or to implement a power button. Make sure to follow the datasheet's guidelines for EN pin usage and timing.
The BQ25820RRVR has built-in OVP and OCP features. However, you may need to add external components to customize the protection thresholds. Consult the datasheet for the recommended component values and configurations. Additionally, ensure that your design can handle the fault conditions and provide a safe shutdown or reset mechanism.
The BQ25820RRVR has a thermal shutdown feature to prevent overheating. To ensure reliable operation, follow the recommended thermal design guidelines, such as using a heat sink, providing adequate airflow, and keeping the device away from heat sources. Monitor the device's temperature and adjust your design accordingly to prevent thermal issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ25820RRVR Overview

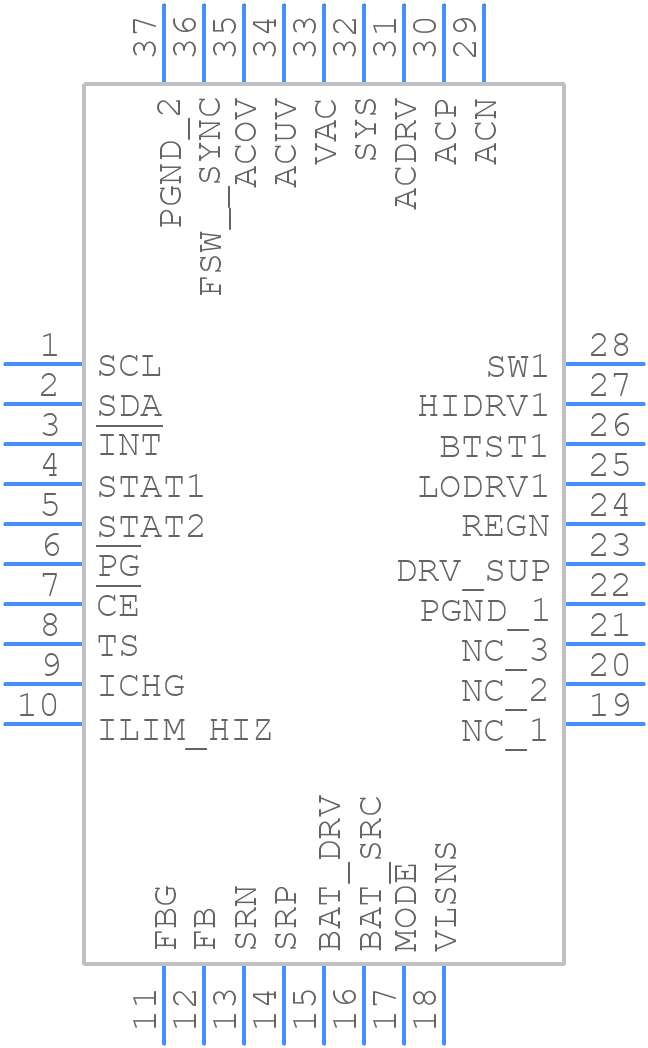

Use the download button to access the BQ25820RRVR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ258,
or try a keyword search, such as Power Management Circuits
