Part Image

BQ25895MRTWR - Texas Instruments

Description: Single Cell 5A Fast Charger MaxCharge™ Technology for High Input Voltage and 3.1A Boost

Download BQ25895MRTWR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

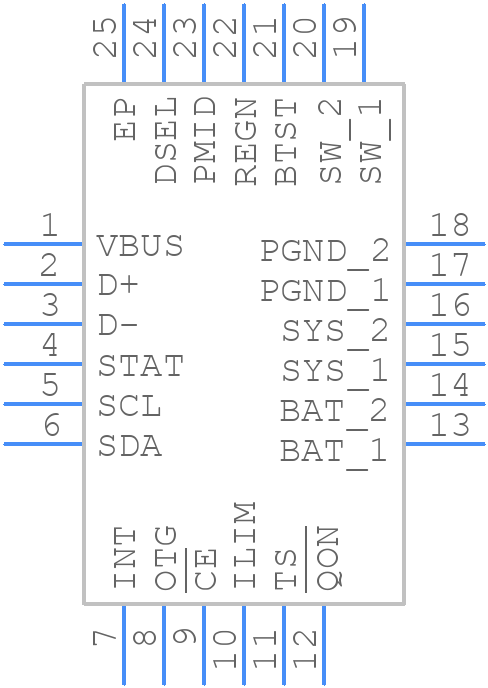

BQ25895MRTWR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ25895MRTWR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RTW (S-PWQFN-N24)
click to zoom
3D Models
BQ25895MRTWR - Texas Instruments - 3D model - Quad Flat No-Lead - RTW (S-PWQFN-N24)
click to zoom

BQ25895MRTWR Details

  • Manufacturer Part Number:

    BQ25895MRTWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • Input Voltage-Max:

    14 V

  • Input Voltage-Min:

    3.9 V

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    3 mA

  • Supply Voltage-Max (Vsup):

    14 V

  • Supply Voltage-Min (Vsup):

    3.9 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

BQ25895MRTWR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate layer for the high-current paths is recommended. The datasheet provides a recommended layout, but it's essential to follow good PCB design practices to minimize noise and ensure reliable operation.
  • Choose an inductor with a high saturation current rating, low DC resistance, and a suitable inductance value (e.g., 2.2 μH to 4.7 μH). The datasheet provides guidance on inductor selection, but it's crucial to consider the specific application requirements and operating conditions.
  • The BQ25895MRTWR can handle input voltages up to 18 V, but it's recommended to operate within the specified range of 4.5 V to 12 V for optimal performance and reliability.
  • The output voltage can be set using the FB pin and an external resistor divider network. The datasheet provides a formula to calculate the required resistor values for a specific output voltage.
  • The BQ25895MRTWR has a thermal pad that should be connected to a solid ground plane or a thermal relief pattern on the PCB. Ensure good airflow and consider using a heat sink or thermal interface material to maintain a safe operating temperature.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BQ25895MRTWR Overview

Use the download button to access the BQ25895MRTWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ258, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
