BQ25895MRTWT - Texas Instruments

Description: Single Cell 5A Fast Charger MaxCharge™ Technology for High Input Voltage and 3.1A Boost

Download BQ25895MRTWT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

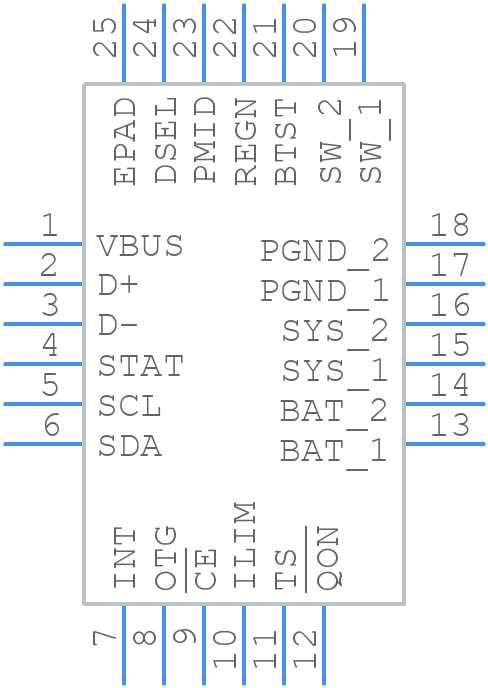

BQ25895MRTWT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ25895MRTWT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RTW (S-PWQFN-N24)
click to zoom
3D Models
BQ25895MRTWT - Texas Instruments - 3D model - Quad Flat No-Lead - RTW (S-PWQFN-N24)
click to zoom

BQ25895MRTWT Details

  • Manufacturer Part Number:

    BQ25895MRTWT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    ADJUSTABLE OUTPUT VOLTAGE RANGE FROM 4.5 VOLT TO 5.5 VOLT

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • Input Voltage-Max:

    14 V

  • Input Voltage-Min:

    3.9 V

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    3 mA

  • Supply Voltage-Max (Vsup):

    14 V

  • Supply Voltage-Min (Vsup):

    3.9 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

BQ25895MRTWT Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the high-current paths short and wide, and use thermal vias to connect the IC to the ground plane.
  • Use the bqStudio software to customize the charging profile based on the battery's chemistry, capacity, and recommended charging parameters. Consult the battery manufacturer's datasheet for specific guidelines.
  • The IC has a thermal shutdown feature that activates at 150°C. Ensure good airflow, use a heat sink if necessary, and follow the recommended PCB layout to minimize thermal resistance. Monitor the IC's temperature using the THERM pin.
  • Use external resistors and zener diodes to implement OVP and UVP. The BQ25895MRTWT has a built-in comparator for OVP, and an external circuit can be used for UVP. Consult the datasheet for specific implementation details.
  • Follow the recommended PCB layout and component placement to minimize EMI. Use shielding, filtering, and grounding techniques to reduce emissions. Ensure compliance with regulatory standards such as CISPR 22 and FCC Part 15.
