BQ25910YFFR - Texas Instruments

Description: I2C Controlled 6A Three-Level Switch Mode Single-Cell Charger

Download BQ25910YFFR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

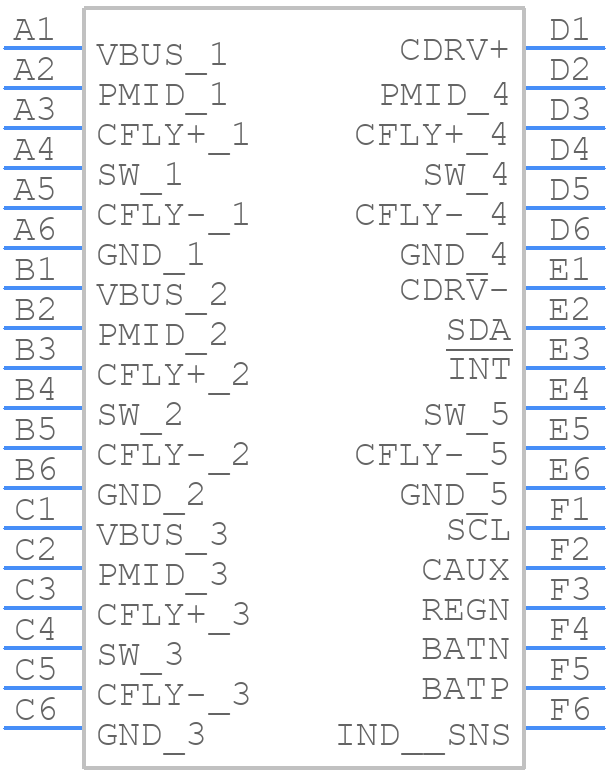

BQ25910YFFR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ25910YFFR - Texas Instruments PCB footprint - BGA - BGA - YFF0036_2021_1
click to zoom
3D Models
BQ25910YFFR - Texas Instruments - 3D model - BGA - YFF0036_2021_1
click to zoom

BQ25910YFFR Details

  • Manufacturer Part Number:

    BQ25910YFFR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • Input Voltage-Max:

    14 V

  • Input Voltage-Min:

    3.9 V

  • JESD-30 Code:

    R-XBGA-B36

  • JESD-609 Code:

    e1

  • Length:

    1.6 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.625 mm

  • Supply Voltage-Max (Vsup):

    14 V

  • Supply Voltage-Min (Vsup):

    3.9 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.6 mm

BQ25910YFFR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended layout and placement guide in the application note SLUA727, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The selection of the inductor depends on the specific application requirements, such as the input voltage, output voltage, and maximum current. Texas Instruments provides an inductor selection guide in the datasheet, and also recommends using the WEBENCH Power Designer tool to find suitable inductors.
  • The BQ25910YFFR can handle a maximum input voltage of 20V, but it is recommended to operate within the specified input voltage range of 3.5V to 18V for optimal performance and reliability.
  • The BQ25910YFFR has a programmable output voltage, which can be set using an external resistor divider network connected to the FB pin. The datasheet provides a formula to calculate the required resistor values for different output voltages.
  • The EN (enable) pin is used to enable or disable the BQ25910YFFR. When the EN pin is high, the device is enabled and operates normally. When the EN pin is low, the device is disabled and enters a low-power shutdown mode.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BQ25910YFFR Overview

Use the download button to access the BQ25910YFFR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ259, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
