BQ25910YFFT - Texas Instruments

Description: I2C Controlled 6A Three-Level Switch Mode Single-Cell Charger

Download BQ25910YFFT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

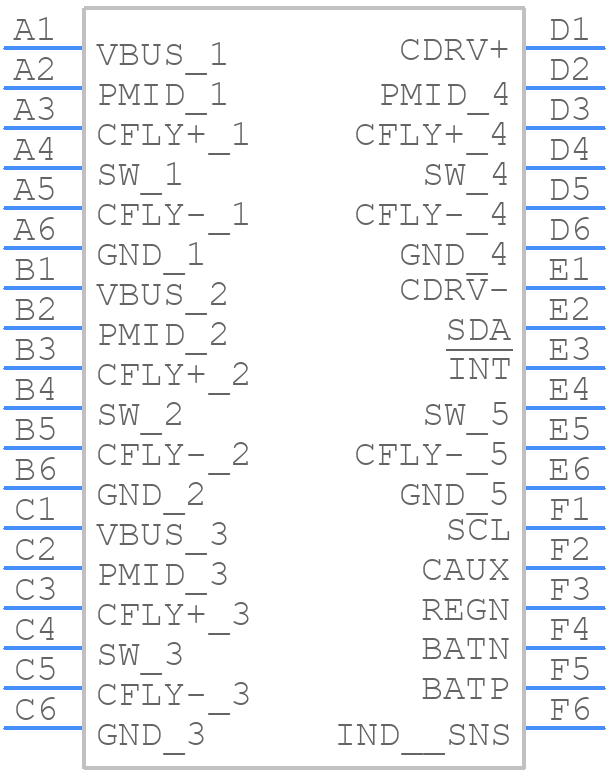

BQ25910YFFT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ25910YFFT - Texas Instruments PCB footprint - BGA - BGA - YFF0036_2021_1
click to zoom
3D Models
BQ25910YFFT - Texas Instruments - 3D model - BGA - YFF0036_2021_1
click to zoom

BQ25910YFFT Details

  • Manufacturer Part Number:

    BQ25910YFFT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • Input Voltage-Max:

    14 V

  • Input Voltage-Min:

    3.9 V

  • JESD-30 Code:

    R-XBGA-B36

  • JESD-609 Code:

    e1

  • Length:

    1.6 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.625 mm

  • Supply Voltage-Max (Vsup):

    14 V

  • Supply Voltage-Min (Vsup):

    3.9 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.6 mm

BQ25910YFFT Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended layout and placement guide in the application note SLUA727, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The BQ25910YFFT has a programmable charging profile, and Texas Instruments provides a charging profile optimization tool, the BQ25910EVM, which allows you to customize the charging profile for your specific battery chemistry. You can also refer to the application note SLUA728 for more information on charging profile optimization.
  • The BQ25910YFFT can handle input voltages up to 24V, but it's recommended to limit the input voltage to 18V to ensure reliable operation and prevent damage to the device.
  • The BQ25910YFFT has a built-in OVP feature that can be enabled by connecting the OVP pin to a voltage divider network. The application note SLUA729 provides more information on implementing OVP with the BQ25910YFFT.
  • The typical efficiency of the BQ25910YFFT is around 92-95% depending on the input voltage, output voltage, and charging current. You can refer to the datasheet for more information on efficiency vs. input voltage and output current.
