Texas Instruments provides a recommended layout and placement guide in the application note SLUA727, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The BQ25960YBGR has a programmable charging profile, and Texas Instruments provides a charging profile optimization tool, the BQ25960EVM-G1, which allows you to customize the charging profile for your specific battery chemistry. You can also refer to the application note SLUA728 for more information on charging profile optimization.
The BQ25960YBGR can handle input voltages up to 24V, but it's recommended to limit the input voltage to 18V to ensure reliable operation and prevent damage to the device.
The BQ25960YBGR has built-in OVP and UVP features, but you need to add external components to implement them. Texas Instruments provides a detailed implementation guide in the application note SLUA729, which includes schematics and component values for OVP and UVP circuits.
Yes, the BQ25960YBGR can be used with a battery gauge, such as the Texas Instruments bq27441, to monitor the battery's state of charge (SOC) and state of health (SOH). The BQ25960YBGR provides a battery voltage and current monitoring interface that can be connected to the battery gauge.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ25960YBGR Overview

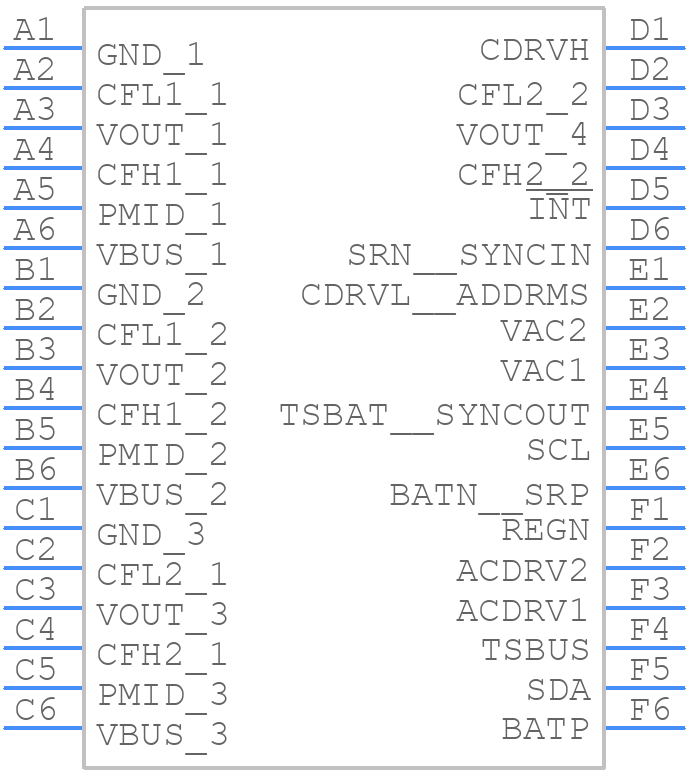

Use the download button to access the BQ25960YBGR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ259,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
