Texas Instruments recommends a compact layout with the BQ26200PW placed close to the battery, and the input and output capacitors placed close to the device. A 4-layer PCB is recommended, with the top layer for signals, the second layer for power, the third layer for ground, and the bottom layer for signals. A thermal pad should be connected to a solid ground plane to improve thermal performance.
The BQ26200PW has a programmable charging current and voltage. The optimal values depend on the specific battery chemistry, capacity, and manufacturer's recommendations. Engineers can use the device's I2C interface to program the charging current and voltage, and can also use the device's built-in battery monitoring features to monitor the battery's state of charge and adjust the charging parameters accordingly.
The BQ26200PW is rated for operation from -40°C to 85°C. However, the device's thermal performance may be affected at high temperatures, and engineers should ensure that the device is properly heatsinked and that the thermal pad is connected to a solid ground plane to improve thermal performance.
The BQ26200PW has built-in safety features such as overcharge protection, over-discharge protection, and short-circuit protection. Engineers can also use the device's I2C interface to monitor the battery's state of charge and adjust the charging parameters accordingly. Additionally, engineers should ensure that the battery is properly selected and matched to the device's charging parameters, and that the charging circuit is designed to prevent overcharging or undercharging.
Yes, the BQ26200PW is designed to support multiple battery chemistries, including Li-Ion, Li-Polymer, and NiMH. However, engineers should ensure that the device is properly configured and programmed for the specific battery chemistry being used, and that the charging parameters are adjusted accordingly.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ26200PW Overview

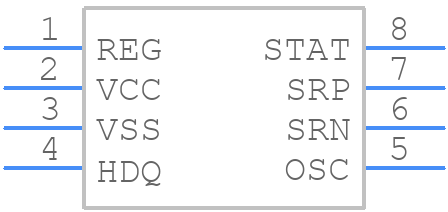

Use the download button to access the BQ26200PW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ262,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
