BQ26200PWR - Texas Instruments

Description: Battery Management FLASHBased Precision Multi-Chem Counter

Download BQ26200PWR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

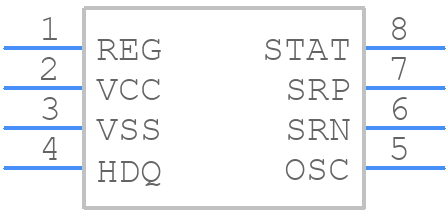

BQ26200PWR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ26200PWR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW0008A
click to zoom
3D Models
BQ26200PWR - Texas Instruments - 3D model - Small Outline Packages - PW0008A
click to zoom

BQ26200PWR Details

  • Manufacturer Part Number:

    BQ26200PWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    1

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    BATTERY MONITOR

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.4 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.8 V

  • Supply Voltage-Nom (Vsup):

    3.6 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

BQ26200PWR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the BQ26200PWR evaluation module documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The BQ26200PWR datasheet provides a list of recommended external components, including capacitors, resistors, and inductors. Engineers can use the TI Power Stage Designer tool to select the optimal components based on their specific application requirements.
  • The BQ26200PWR is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and thermal management. Engineers should ensure that the device is properly cooled and follow the thermal design guidelines to prevent overheating.
  • The BQ26200PWR has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor and capacitor network. Engineers can also use external circuitry to implement more advanced overcurrent protection schemes.
  • Yes, the BQ26200PWR is qualified for automotive and high-reliability applications, and meets the requirements of the AEC-Q100 standard. However, engineers should ensure that their specific application meets the necessary safety and reliability standards.
