BQ26500PWRG4 - Texas Instruments

Description: Battery Management Complete Battery Fuel Gauge

Download BQ26500PWRG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

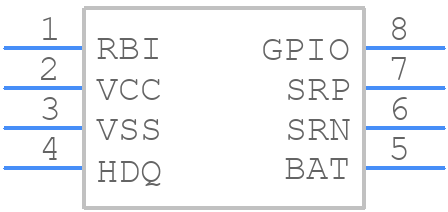

BQ26500PWRG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ26500PWRG4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW0008A 2021
click to zoom
3D Models
BQ26500PWRG4 - Texas Instruments - 3D model - Small Outline Packages - PW0008A 2021
click to zoom

BQ26500PWRG4 Details

  • Manufacturer Part Number:

    BQ26500PWRG4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • JESD-30 Code:

    R-PDSO-G8
