Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good design practices, such as keeping the sense lines short and away from noise sources, using a solid ground plane, and placing the device close to the battery.
The BQ27320YZFR has a built-in calibration mechanism. You can use the TI-provided software, such as the Fuel Gauge Calibration Tool, to calibrate the device. The tool guides you through the process, which involves charging and discharging the battery while the tool collects data and adjusts the gauge's parameters.
The BQ27320YZFR has an SOC accuracy of ±5% over the entire operating range, as specified in the datasheet. However, this accuracy can be affected by factors such as battery age, temperature, and charging/discharging patterns.
Yes, the BQ27320YZFR supports multiple battery chemistries, including lithium-ion, lithium-polymer, and lithium-iron-phosphate. However, you may need to adjust the device's configuration and calibration settings depending on the specific battery chemistry used.
The BQ27320YZFR has built-in protection features, such as overcharge and over-discharge protection, but it's essential to implement additional safety features, such as thermal monitoring and fault detection, to ensure safe operation. You should also follow proper design and testing procedures to ensure compliance with safety standards.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ27320YZFR Overview

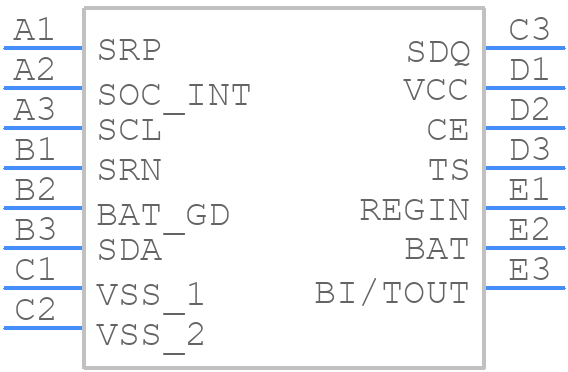

Use the download button to access the BQ27320YZFR schematic symbol, PCB footprint, and 3D model.
